Film Squeezing Pelletizer

Product Description

film squeezing pelletizer is mainly used for drying the film.
Working principle and application
With the screw pressure to dewater the water from the material, Washed plastic film, agriculture film, PP woven bag, big packing bag,PE farm film,ton bags, nylon etc, can be dewater from this machine. Special designed screw and gearbox can be dry the material very well. When use this material pelletizing or granulation, the capacity will be much higher, it can dewater more than 95%-99.5%. (Up to customer requirement, the material can be plastizing or half plastizing)
Advantage of this machine
1. Special designed screw and pressure way, can dry the material much more better than normal machine
2. Dewater: can be 98%
3. Advantage technical, low power, low noise, easy to operate, safty and price resonable
4. This Mechnical pressure dewater, compare with hot wind dryer system, this machine can save space and power
Project summary:

NO.	Item.	Spec.
1	Material	washed PP ,PE film
2	Capacity	output:600-800kg/hr
3	Electricity power	380V,50Hz,3 Phase
4	Finally products moisture	≤2%
5	Installed power	150KW for whole plant
6	Power consumption	70% of installed power
7	Plant area	> 36 Square meter > 3 meter height Estimate line size: 6m(Length)* 2 m(Width)* 3 m(Height) we can make the line turn as I or L shape to fit the buyer's plant
8	Manpower	1-2 Persons required
9	Payment terms	30% by TT as deposit; Balance paid by TT before shipment.
	Delivery time	40 Working days since receive the deposit
	Package	Packing by film.
	Warranty Period	12months since the date of BL.
	Shipping	By sea
	Offer validity	60Days

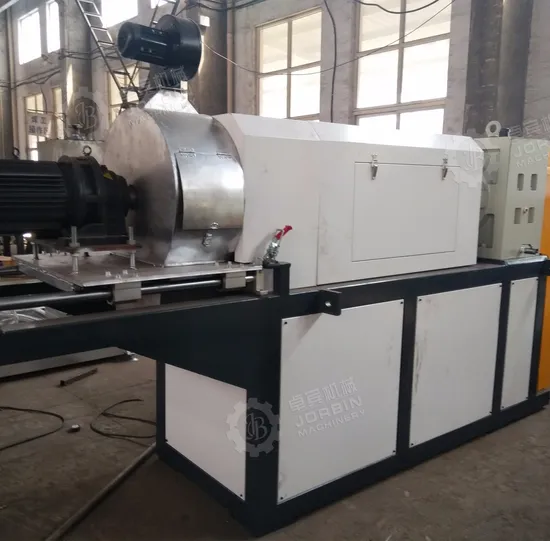

Machine photoes
Screw and barrle inside of the machine
Die of the machine
Machine under producting
Final material after the machine
Machine all parts:

Item NO.	Item name	Quantity	Power
1	Belt conveyer	1 set	2.2kW
2	Main machine	1set	110kw
3	Pelletizing	1 set	5.5kw
4	Wind transmission system	1 set	5.5kw
5	Storage Silo	1 set	_
6	Electrical control box	1 set	_

Kindly feel free to contact me for more details of the machine. 1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468
