Efficient Radial Drilling Machinery with Mt4 Spindle Taper Design

Product Description

Product Description

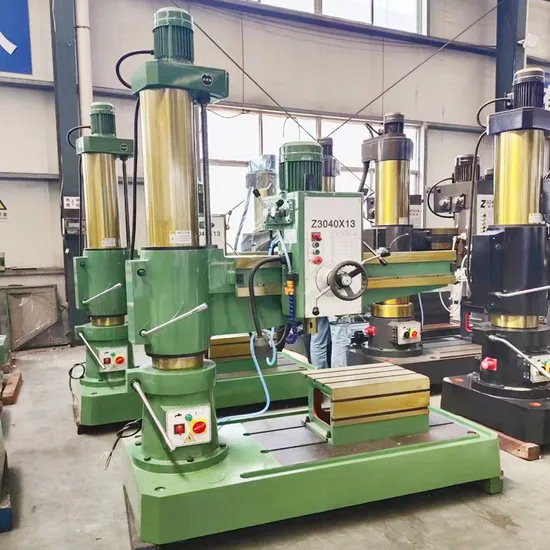

Z3040X13 Z3040×16 Z3050 Z3063 Z3080 Radial Drilling Machine - Discover a range of our robust radial drilling machines designed for superior performance and efficiency. FEATURES - Unlock the potential of your machining processes with our state-of-the-art features that promise both innovation and convenience.
1. Streamline your operations with our hydraulic gear-change structure designed to significantly reduce subsidiary time, enhancing overall productivity.
2. Experience seamless control with a single handle operation managing spindle rotation, stopping (braking), shifting, and engaging neutral gear, all ingeniously designed for user convenience.
3. Reliability redefined with the hydraulic-driven rhombic block controlling the headstock, radial arm, and internal and external column clamping structures, ensuring steadfast performance.
4. Prioritize safety with our comprehensive sound and safety protective installation featuring an external column for added security.
5. Built to last, our machine boasts durable accuracy and longevity, thanks to meticulously designed efficient measures implemented during its structure design and manufacturing process.
6. Dependable and safe, the electric equipment of our machine guarantees human safety while being robust, durable, and maintenance-friendly.
The large weight and sturdy construction of the drill deliver unparalleled stability and vibration-free operation, ensuring precise outcomes every time.Ease your workflow with the cube table, designed to facilitate quick adjustment and efficient handling of workpieces, maximizing your productivity.Height adjustment made effortless with motor-powered arm elevation, allowing for precise customization of each operation.Enhanced performance and ergonomics with a strategically positioned control panel at the front of the drill, ensuring optimal operational efficiency.Enjoy smooth, precise arm travel facilitated by the polished surface of the column, engineered for easy and unrestricted movement.Manual blocking of the head and arm of the column offers added control and security during operation, ensuring safe and efficient performance.With a versatile speed range, our drill guarantees precise and expedited processing, adapting seamlessly to diverse drilling needs.
Product Parameters

Modle	Unit	Z3032×10	Z3040×13	Z3050X16/1	Z3063x20/1	Z3080x25
Table SIZE (L*W*H)	mm	630X500X500			800X630X500	1000X800X560
Dimensions of Box Table	mm	630X500			800X630	1000X800
T-slot	No.	5	5	5	7	7
T Distance between two adjacent T-slots		150
T Width of T-slot		22
Dimensions of base	mm		2400X1000X200		2900X1250X250	3530X1400X300
Working surface of base	mm		1560X830		1950X1080	1200X2380
T-slot/Width/Distance		4/28/180			4/28/250	4/28/276
Distance from spindle axis to column	mm	360-1000	360 - 1300	350-1600	450-2000	500-2500
Distance from spindle nose to table surface	mm	140-1100	260 - 1300	320-1220	400-1600	550-2000
spindle head travel(horizontal)	mm	1000	1100	1250	1600	2000
Spindle taper		MT4	MT4	Morse No.5	Morse No.5	Morse No.6
Quill travel	mm	220/280		315	400	450
Max.drilling diameter	mm	35	40	50	63	80
Speed Range /steps	rpm	75-1220	28-1200	25-2000(16)	20-1600(16)	16-1250(16)
Max.output torque of spindle	N.m		500	500	600	1568
Spindle feed/steps	mm/r/step	0.1,0.16,0.25	0.1-0.25	0.04-3.2/16	0.04-3.2/16	0.04-3.2/16
Spindle motor power	kW	4			5.5	7.5
Elevating motor	kW	1.5	1.1	1.5	2.2	3
Coolant pump	kW	0.09	0.09	0.09	0.125	0.125
Clamping type		hydraulic
Overall dimension (L*W*H)	mm	1500×705×2050	1600×700×2050	2500X1070X2840	3080X1250X3400	3730X1400X4025
Package dimension (L*W*H)	cm	158×75×213	167×77×217	258X111X270	318X142X309	380×147×410
Net weight	kg	1100/1200	1500	3500	7000	11000

Radial drilling machine is an indispensable hole processing equipment, excelling in drilling, reaming, tapping, and end face repair. Its hydraulic and mechanical variants offer flexibility, ease of use, and broad applicability. Ideal for single or batch production, especially with large porous parts, it remains a staple in general machining workshops.
