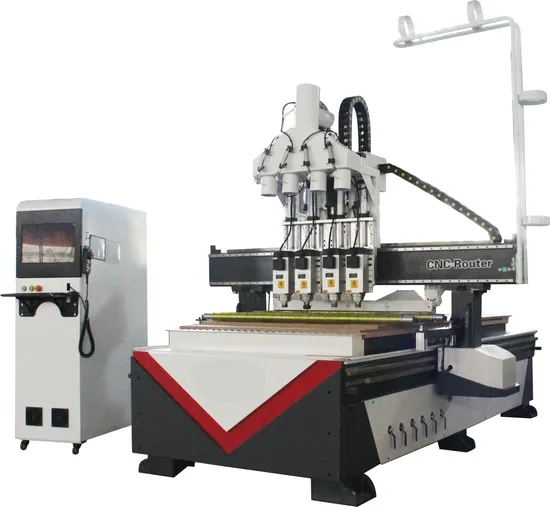

1325 Woodworking CNC Router Atc for Wooden Door Furnitures Cabinets/ 1530 Wood Caving/Engraving and Cutting Machine / 3D MDF Plywood Acrylic Cutting Machinery

Product Description

Model	GD-1325-4
Working area	1300*2500mm
Z-axis working area	200-300mm(optional)
Resolution	+/- 0.01mm
Max Cutting Speed	70m/min
X and Y axis transmission	Germany 1.5MRack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	4*6.0KW, air-cooling SPINDLE
Working Mode	1.5KW Servo motor
Reudcer	Japan Shimpo
Dust-collection function	Yes
Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan JINKE Control System(Support multilingual)

WORKING TABLE CONTROL VALVE Vacuum+T-slot table 6 valves repectively control 6 zones of the vacuum table
work table is divided into 6 partitions,are controlled separately Pressure can be adjusted separately.
SERVO MOTOR 4*6KW SPINDLE 1.5KW LEADSHIN Servo motor 6KW HQD Air Cooling Spindle
Can bereplaced with Japanese Yasukawa Servo motor Can bereplaced with HSD ,Fast Speed and High efficiency
FREQUENCY CONVERTER CONTROL SYSTEM
HPMOT 11KW Frequency Converter TAIWAN JINKE Large Screen Operating System
Stable and efficient work Support English, Spanish, Japanese, Vietnamese

TOOLS SETTERS AUTOMATIC OILING AUXILIARY PUTTER

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).

5.We accept the ODM,OEM If you have other needs, please let me know
