629kg P4 Outdoor Quick Assemble Solor LED Display Trailer with Solor Panel 2240mm*1280mm
| US$12,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
P4-Outdoor solar led trailer 2240*1280mm
Pixel Pitch
4mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
30W/Sqm
Pixel Density
62500DOT/Sqm
Scanning Mode
1/10
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC, ETL, FCC
Trailer Size
2382*1800*2074mm
Total Weight
629kg
LED Screen Dimension
2240mm*1280mm
Module Size
320mm*160mm
Brightness
>5500CD/Sqm
Max Power Consumption
100W/Sqm
Cabinet Material
Iron
Fresh Rate
3840
Transport Package
Flight Case
Specification
2382*1800*2074mm
Trademark
D-king
Origin
China
HS Code
8528591090
Product Description
Payment& Remarks1. Lead time:About 5~15working days once received the deposit.
2. Payment Terms:
We strongly suggest you choose T/T, PayPal etc. payment method.
50% as deposit forproducing, 50% balance to be paid before shipment.
3. Shipping Terms:
We can accept ship by sea, by air, by express etc.
4. Warranty:
2 years with lifetime maintenance.
This is just the reference price for one set of solar led display trailer
Please feel free to contact us for free quotes and plans.
Product Description

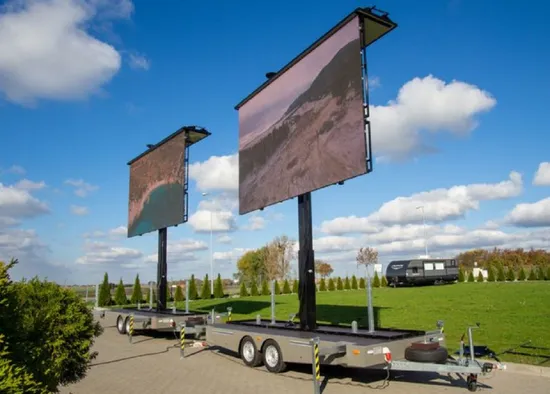

Full Color P5 Outdoor LED Screen Trailer with Solar Panels
DK-S3 P41.Can lift 800MM, can rotate 360 degrees.
2. equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen.
3. with brake device!
4.Trailer lights withEMARK certification, including indicator lights, brake lights, turn lights, side lights.
5. with 7 core signal connection head!
6. with tow hook and telescopic rod!
7. two tire fenders
8. 10mm safety chain,80 grade rated ring
9. reflector, 2 white front, 4 yellow sides,2 red tail
10. the whole vehicle galvanized process
11. brightness control card,automatically adjust brightness.
12. VMS can be controlled wirelessly or wirelessly!
13. Users can remotely control LED SIGN by sending SMS messages.
14. equipped with GPS module, can remotely monitor the position of VMS.
Specification
| Trailer appearance | ||||||
| Trailer size | 2382×1800×2074mm | Supporting leg | 440~700 load 1.5 tons | 4 PCS | ||
| Total weight | 629KG | Tre | 165/70R13 | |||
| Max speed | 120Km/h | Connector | 50mm ball head, 4 hole Australian impact connector | |||
| Breaking | Hand brake | Axle | Single axle | |||
| LED Screen | ||||||
| Dimension | 2240mm*1280mm | Module Size | 320mm(W)*160mm(H) | |||
| light brand | Hongzheng Gold wire light | Dot Pitch | 4 mm | |||
| Brightness | ≥5500cd/sqm | Lifespan | 100,000hours | |||
| Average Power Consumption | 30w/sqm | Max Power Consumption | 100w/sqm | |||
| Drive IC | ICN2069 | Fresh rate | 3840 hz | |||
| Power Supply | HuaYun | Receiving card | NOVA MRV416 | |||
| Cabinet size | 2240*1280mm | system support | Windows XP,WIN 7, | |||
| Cabinet material | Iron | Cabinet weight | Iron 50kg/m2 | |||
| Maintenance mode | Rear service | Pixel structure | 1R1G1B | |||
| LED packaging method | HZ-4535RGB4MEX-M00 | Operating Voltage | DC 4.2,3.8V | |||
| Module power | 5W | scanning method | 1/6 | |||
| HUB | HUB75 | Pixel density | 62500 Dots/sqm | |||
| Module resolution | 40*20Dots | Frame rate/ Grayscale, color | 60Hz,13bit | |||
| Viewing angle, screen flatness, module clearance | H:100°V:100°,<0.5mm,<0.5mm | Operating temperature | -20~50ºC | |||
| Power parameter (external prower supply) | ||||||
| Input voltage | Single phase 220V | Output voltage | 24V | |||
| Inrush current | 10A | Average power consumption | 50wh/sqm | |||
| Control system | ||||||
| Player | Nova TB30-4G | receiving card | Nova-MRV316 | |||
| Luminance sensor | NOVA NS060 | |||||
| Manual lifting | ||||||
| Manual lifting: | 800mm | Manual rotation | 330 degrees | |||
| Solar panel | ||||||
| Dimension | 1000mm*2000 mm*1pcs | Power | 410W*1=410W | |||
| Solar controller(Tracer3210AN/Tracer4210AN) | ||||||
| input voltage | 9-36V | Output voltage | 24V | |||
| Rated charging power | 780W/24V | Maximum power of photovoltaic array | 1170W/24V | |||
| The battery | ||||||
| Dimension | 510×210x200mm | Battery specification | 12V150AH*4Pcs | 7.2 KWH | ||
