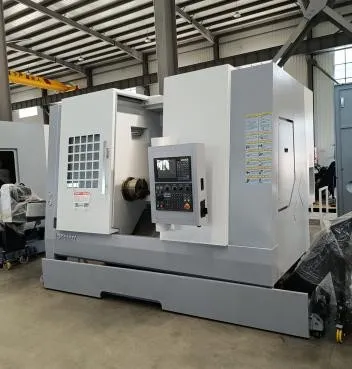

CNC Truning Center Machine with Y Axis
Basic Info.
Model NO.
TCK600Y
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Flat Bed
High Precision
Transport Package
Plywwod
Specification
CLK6165E
Origin
China
HS Code
84581100
Production Capacity
1000PCS/Year
Product Description
Slant Bed CNC Turning center TCK600Y:1.TECHNICAL PARAMETERS:
| Item | Unit | specification | Optional | |
| slant bed degree | ° | 45° | ||
| swing over bed | mm | 600 | ||
| Maximum cutting length | mm | 500 | ||
| maximum cutting diameter | mm | 460 | ||
| maximum turning diameter on slide plate | mm | 400 | ||
| spindle nose form and code | electro-spindle | A2-6 | A2-8 | |
| diameter of spindle hole | mm | 65 | 80 | |
| Maximum bar diameter | mm | 50 | 70 | |
| single spindle headstock | spindle speed range/maximum output torque of spindle | r/min/N.m | 50-4500/144 | |
| Output power of main motor | 30min/continuity | kw | 30 | |
| Shandard chuck | chuck diameter | inch | 8 | 10/12 |
| X-axis fast moving speed | m/min | 30 | ||
| Y-axis fast moving speed | m/min | 12 | ||
| Z-axis fast moving speed | m/min | 30 | ||
| C-axis fast moving speed | m/min | 200 | ||
| X-axis travel | mm | 280 | ||
| Y-axis travel | mm | ±50 | ||
| Z-axis travel | mm | 550 | ||
| C-axis travel | mm | 360° | ||
| Tailstock travel | Mm | 450 | ||
| taper of tailstock sleeve | morse/ | 4# | ||
| standard tool holder from | BMT55 | Horizontal 12 station | ||
| tool power | KW | 5.5 | ||
| Tools maximum speed | Rpm | 4000 | ||
| machine weight | Total weight | kg | 4500 | |
| dimension of machine tool | (length*width*height) | mm | 2790×1900×1850 | |
2.TECHNICAL CONFIGURATION
| DEFINITION | MODEL AND SPECIFICATION | MANUFACTURER |
| Control system | SIEMENS 828D | SIEMENS 828D |
| Main motor | 30KW | CTB |
| XZaxis motor +drive | SIEMENS | SIEMENS |
X axis ball screw | 3212*805 | NSK |
Z axis ball screw | 3212*1180 | NSK |
| X axis guide | 45mm roller guideway | HIWIN |
| Z axis guide | 45mm roller guideway | HIWIN |
| tailstock guide | 45mm roller guideway | imported |
| mainshaft bearing | JAPAN NTN & NSK&NACHI | JAPAN |
| BMT55 | Power tool station SHDY12 | |
| Hollow hydraulic Chuck | 8″ | AUTOGRIP Taiwan |
| oil cylinder | Automatic concentration lubrication | CHINA |
| tailstock | Hydraulic tailstock | Our factory |
| Chip conveyer | Chain type | CHINA |
