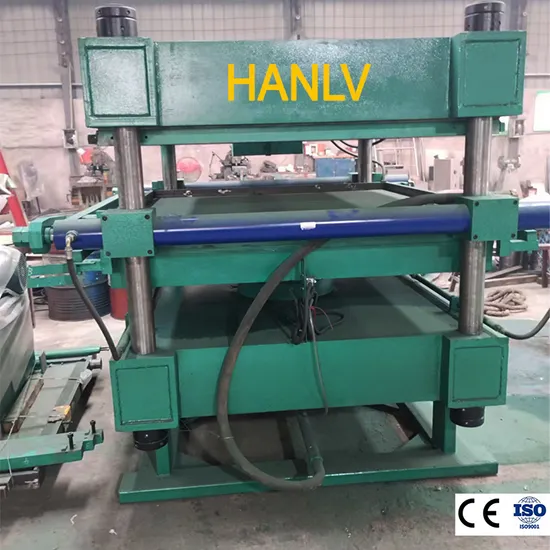

Outdoor Rubber Tile Press Machine Rubber Floor Mats Making Machine Rubber Tile Vulcanizing Machine

Product Description

Product Description Rubber Tile Making Machine For Tire Recycling Plant
The Rubber Tile Making Machine is suitable for vulcanizing various rubber, plastic model products and non-model products. Heating with tubular electric heating elements eliminates the need for boilers, reduces air pollution, and keeps the workshop clean.

Product Highlights 1.Push and pull design save time and enlarge the capacity.
2.High speed open/close mould.
3.High working pressure,hot procession,which make the product life much longer.
4.Reasonable structure, easy operation, safe and reliable.
5.A variety of molds, and molds can be customized.
Process 1. Mixing: Put the rubber granulates and stain into the stirring barrel to stir, then put into the adhesive to stir. It will take 4-6 mins to be done.
2. Weighing:Weigh the stirred rubber powder according to the floor tiles thickness you want to make.
3. Paving and pressing: pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can be with some
coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.
4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of Vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
5. Inspecting: Inspect the tiles' surface.If no aberration, no flaw, then it is of high quality products.
Technical Data Technical Parameters

Item	XLB-1000, Push-Pull design
Power	5(Motor)+13+13+13(Heating) KW
Layer distance	175mm
Heating Plate Size	1150*1150mm
Product Size	1000*1000*20-80mm
Pressure	160Ton
Dimension	2450*1200*2100mm
Weight	9 tons
Flat Molds	2pcs of Up-molds, 4pcs of Bottom-molds and spare bars for different thickness Can make 2pcs of 1000x1000mm size per batch 8pcs of 500x500mm size per batch

Product Details


Products



FAQ FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
