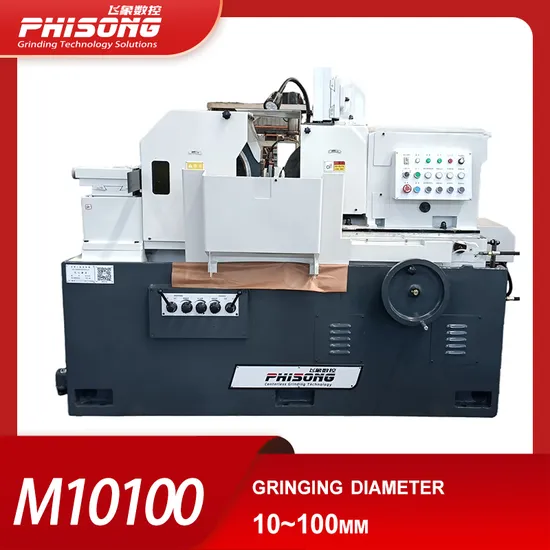

Hydraulic Driving Centerless Grinding Machine for Bearings, Shafts Fine Grinding

Product Description

Product Description
1.Machine body Casting, natural aging and heat treatment for reasonable deformation and better durability.

2.GW and RW(Regulating wheel)
GW and RW are cantilever type ,easier for wheel changing.
GW fixed on machine bed, with better reliability and stability

3.Feeding
handwheel for feeding
Flat V hrdraulic guide foe feeding..
4.Dressing for GW and RW
Hydraulic guide for GW and RW dresser reciprocating.
Diamond pen for GW and RW dressing.
handwheel for GW and RW dresser feeding.
5.Electric
Converter for RW motor, step-less speed adjusting.
Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
6.Cooling and lubrication Water tank for cooling. Magnetic separator and tap filter optional.
Hydraulic lubrication oil tank.

7.Technical data:

In-feed Grinding	Dia.	10-100mm
	Length	200mm
Through grinding	Dia.	10-100mm
GW SPEC. (O.D.*width*I.D.)		P500*200*305mm
RW SPEC.(O.D.*width*I.D.)		PSA350*200*127mm
GW Speed		1250r/min
RW Speed (stepless)		10-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	0°~ +3°
GW min feeding amount		0.002mm
GW dresser min feeding amount		0.01mm
Height from center line of GW & RW to work rest		255mm
GW Motor		18.5kw
RW Motor		2.2 kw
Power Supply		3N 50HZ 380V
Dimension(L*W*H)		2675*1505*1615mm
Machine Weight		About 4500kg
Accuracy (standard bars D30mm,L100mm)	Roundness	0.002mm
	Cylindricity	0.003mm
	Roughness	Ra.0.32μm

8.Main Accessories

Name	QTY	Unit	Brand
Grinding wheel motor	1	pc	Wannan
Regulating wheel motor	1	pc	Wannan
Low-voltage apparatus	1	set	Chint
Converter for RW	1	set	Huichuan
