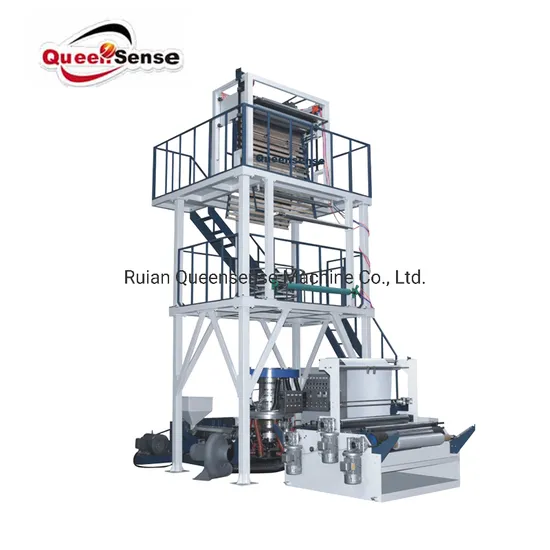

800-1400mm Size LDPE&HDPE Film Blowing Machine
Basic Info.
Model NO.
QS-A65
Type
PE Film Blowing Machine
Raw Material
HDPE/LDPE/LLDPE
Maximum Folding Width of Film
1400mm
Screw Diameter
60mm
Automation
Non-Automatic
Computerized
Computerized
Machine Weight
3t
Certification
CE
Film Wdith
800-1400mm
Motor
37kw
Gear Box
200cm
Screw
65mm
Die Head
280mm Rotary Die Head
Rewinder
Double Rewinder
Capacity
90kg/H
Material
HDPE/LDPE/LLDPE
Transport Package
Wooden Box
Specification
CE
Trademark
QUEENSENSE
Origin
China
HS Code
84773000
Production Capacity
35/50/65/80kg/H
Product Description
Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Optional equipment:
1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main moto(kw) | 11 | 15 | 18.5 | 22 |
| Power of Tracion main moto(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
