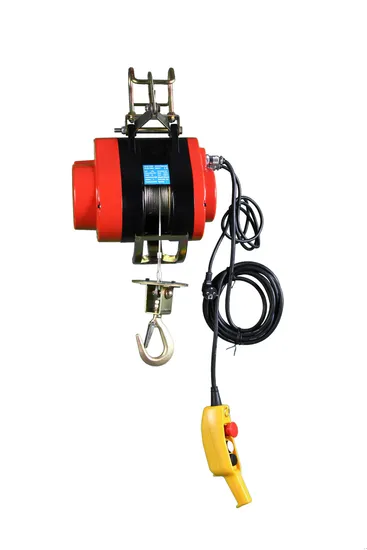

Suspending Mini Electric Hoist 200kg Cap. 20m Lift (HXS-200F)

Product Description

Product Description

Features
Light weight&compact design allow mounting convenient
When rope touches the limit arm, stop automatically.
Induction-motor stops when the rope is reverse wound.
Dynamic brake designs for both static and dynamic loading.
It operates on household power source.
Plug-in cords allow portability with easy.
360° Universal joint saddle hook with safety latch.
1) Complying with the IP54 standards, handled with Emergency stop switch, and with brake and thermal protection device.
2) Compact and artistic in appearance, unique design and excellent Performances, light weight, convenient for installation.
3) With single-phase power, 220V, 230V, 240V and 110V power supply, suitable for Family, also widely used for lifting the goods of workshop, garages, Industrial assembly lines as well as shops and restaurants, such as Unloading metal wares, electric appliances, small machine parts.
4) Lifting capacity: 100-250kg
5) Lifting height: 20m
Product Parameters

Technical Parameters

Model	HXS-100F	HXS-150F	HXS-200F	HXS-250F
Capacity(kg)	100	150	200	250
Lifting speed(m/min)	15		12
Motor(w)	580	780	1080	1200
Voltage(V)	Single phase 110/220/230
Lifting height(m)	20
Wire rope(Φ mmXm)	3.8X22		4.2X22
G. W. /N. W. (kg)	28/26		30/28
Packing size(cm)	43X38X37

Detailed Photos

Company Profile

Company ProfileKaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items, including hoisting macchinery, financial equipments, electric winch, wlwctric truck, electric forklift and hydraulic car, etc.Our comapny locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments. We have the ability of output RMB1500 million every year.We aim to set up KAIXUN brand, creat top quality, offrt brst service and ensure customer satisfactory. We have passed the certification of ISO9001:2008 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 90% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc. Over 120 countries and regions. Our products are highly praiised by our clients.
