Chicken Granule Mixing Drying Machine
| US$5,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
VHJ
Application Area
Agricultural Chemicals
Certification
ISO
Condition
New
Stirring Type
Diving
Working
Diffusion Mixer
Cheap Price
Strong Technical Power
Professional Manufacturering
Experienced After Sale Service
Package
Wooden Case
Delivery
90days
Certificate
ISO9001 ISO14001
Mixer Type
V-Mixer
Layout Type
Verticle
Operating type
Cycle Operating
Mixing Drum Shape
V Shape
Transport Package
Standard Wooden Case
Trademark
Yutong
Origin
China
HS Code
847982
Production Capacity
5-4000kg Per Batch
Product Description

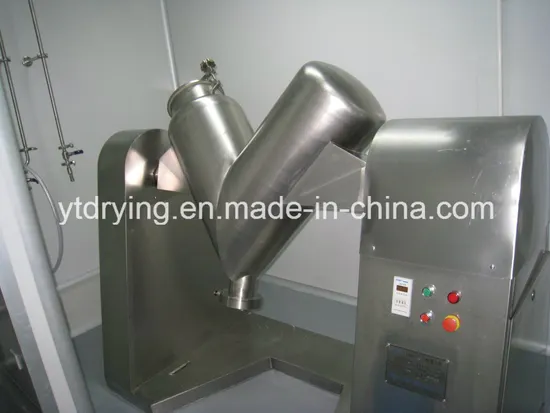

V Shape Chemical Powder Mixer, Mixing Machine, Mixing Equipment, Blender, Blending Machine Product Description DescriptionThe mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished. There is no internal transmission mechanism inside V type mixing equipment and it meets the GMP standard.
Application V type mixer machine is widely used in pharmaceutical, chemical and food industries. It is suited for mixing more than two dry powder or granular materials.
Features
1. V type mixer machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect.
Parameters of V Type Mixer Machine
| Model & specification | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6 |
| Productive capacity (kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Feeding time (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Total volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
