New Electric Automatic Shaft Drive Bstabo Carton Box with Iron Frame Inside All Terrain Vehicle Mini Farm ATV Quad for Adults Mini New Energy Car
Basic Info.
Model NO.
Rock 12i
Rated Power
12kw
Battery Capacity
72ah
Transmission Type
Automatic
Structure
Without Door
Transmission System
Shaft Drive
Fuel
Electric
Brake Type
Disc Brake
Maximum Speed
>75 km/h
Power
>1000W
Certification
CE
Condition
New
Brand
Bstabo
Transport Package
Iron Frame and
Specification
2350x1278x1400 mm
Trademark
BSTABO
Origin
Chongqin China
HS Code
8703101100
Product Description

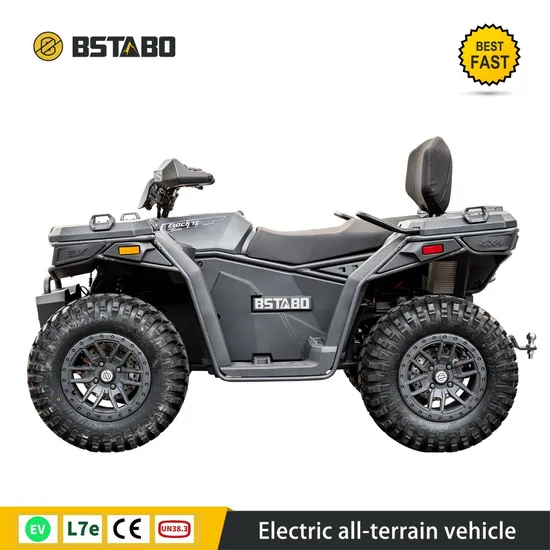

Product Description BSTABO 2024 new two seat 2WD/4WD 12KW 4 wheel electric ATV quad All terrain vehicle with 72Ah battery.Product Parameters
| Model Name | Rock 12i |
| DIMENSIONS | |
| Overall Vehicle Size (L x W x H) | 92.5 x50.3 x55 in(2350x1278x1400 mm) |
| Wheelbase | 57.5 in (1460 mm) |
| Ground Clearance | 11.8 in(300 mm) |
| Seat Height | 35.4in(900 mm) |
| Person Capacity | 2 |
| Max. Power | 22.8HP(17kw) |
| Max. Speed | 70km/h |
| Max. Wheel Torque | 1923N·m |
| Estimated Dry Weight | 992lb(450kg) |
| Payload Capacity | 540lb(245kg) |
| Climbing Capacity | 40° |
| Drive System Type | 2WD/4WD |
| Towing Capacity | 1500lb(680kg) |
| CHASSIS | |
| Steering | EPS |
| Brakes | Hydraulic Disc Brake |
| Parking Brake | Lockable Handle, Mechanical Parking Brake |
| Front Suspension | Dual A-Arm Independent Suspension |
| Rear Suspension | Dual A-Arm Independent Suspension, With Balance Bar |
| Shock Absorber Type | Adjustable Hydraulic/Gas |
| Differential lock | Front Differential Lock |
| Wheels | 14 in. (35.6 cm)Aluminum |
| Front Tires | 27 x 9-14 |
| Rear Tires | 27 x 11-14 |
| ELECTRICAL SYSTEM | |
| Instrument Panel | 5in TFT |
| Lights | LED headlights,LED taillights |
| BATTERY PACK | |
| Rated Voltage | 144V |
| Battery Core Material | LFP |
| BMS | √ |
| Battery Capacity | 72Ah |
| Charging Time | 1.1h(20%-80%) |
| Estimated Range | 80km |
| ELECTRICAL MOTOR | |
| Motor Type | Permanent Magnet Synchronous Motor |
| Rated Power | 12kw |
| Mas. torque | 136N·m |
BSTABO's brand slogan is "Make Exploration More Natural." The company strives to create joyful and passionate outdoor experiences for users, promoting a green, eco-friendly, and technology-driven lifestyle that brings people closer to nature and allows them to enjoy outdoor living.
