Yt-B Series Auto Feeder Carton Cardboard Machine

Product Description

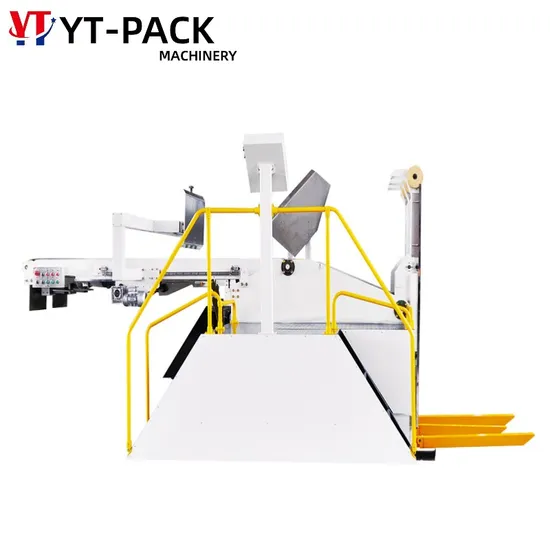

YTSZ-B Series Auto Feeder Machine(Pre-feeder)
Structural features:
Reduce costs, improve efficiency, and reduce waste: single-person operation reduces the number of workers, reduces the labor cost of the enterprise, and reduces the labor intensity of the workers. It can increase the speed of the vehicle and improve the work efficiency. Reducing the number of times workers touch the cardboard can reduce the damage to the cardboard caused by manual intervention. Stable performance: Adopt 2 sets of hydraulic systems with mature efficiency at present. Hydraulic cylinders are used to provide power for inclination, elevation, and conveying bed height, which is powerful, stable and durable; the conveyor belt transmission is powered by hydraulic motors, which takes up little space and has large torque , transport evenly. Simple operation: button and touch screen man-machine graphic interface, PLC control, easy to identify and convenient to operate, real-time display of working status.
Easy to use: Customers provide their own longitudinal ferry logistics vehicles, which are transported to the feeding roller row of the paper loading machine.
Technological parameter:

Model	YTSZ-B2400	YTSZ-B2600
Max.board specifications	1200*2400mm	1200x2600mm
Min.board specifications	300x800mm	300x800mm
stacked weight	2000kg	2000kg
Max piling height	1800mm	1800mm
