PET Bottle to Polyester Staple Fiber Level Plastic Washing Recycling Machine

Product Description

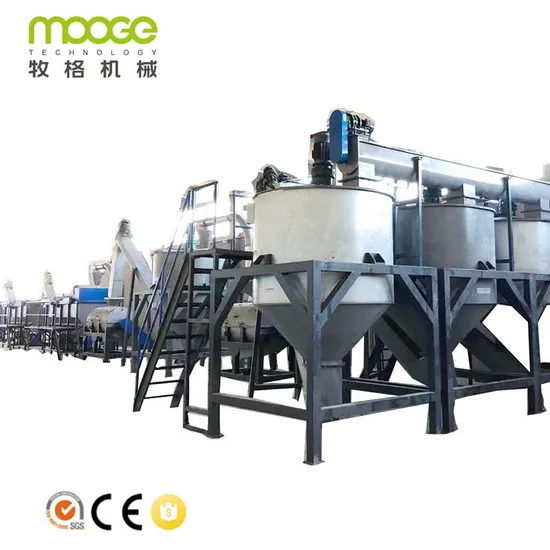

PET Bottle to Polyester Staple Fiber Level Plastic Washing Recycling Machine
Pet bottle washing recycling machine/line/plant is widely used to treat PET bottle, water bottles, cola bottle and PET plastic scrap broken into flakes. Pet bottle recycling machine is a crushing, washing, drying line.Through this recycling machine can easily to remove the labels, caps, rings, gule, dirties and other impurities, the clean PET flakes are mainly used for the fiber production and other related PET products. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad. this line can be displayed "L" or "U" shape according clients' workshop.
and we can customize make the line according to your requirtment.
The working flow of this PET bottle recycling machine is:
Belt conveyor→ label remover→ manual separating table→belt conveyor→Crusher→Screw loader→floating washing tank →friction washer→Screw loader→Hot washer tank→screw conveyor→high speed friction washer→screw loader→floation washing tank→floation washing tank→dewatering machine→drying system→zig zag air classify system→storage hopper→control cabinet
Main Technical Date:

Product capacity	MT-300	MT-500	MT-1000	MT-1500	MT-2000	MT-3000
Capacity	300kg/h	500kg/h	1000kg/h	1500kg/h	2000kg/h	3000kg/h
Needed worker	3-4	5-6	7-8	9-10	10-12	13-14
Installed powder	210kw	230kw	300kw	370kw	450kw	500kw
Water supply	2-3ton/h	3-4ton/h	5-6ton/h	7-8ton/h	9-10ton/h	11-12ton/h
Final product: 1-Flake size: 12-14mm 2-moisture content: ≈0.01% 3-PVC content less than 100ppm

Bale Opener Machine Trommel Machine
Function: Opening the PET bottle bales and scatter the bottles Function: Loosen the bottles, remove the sand or stone from bottles, feeding out bottles constantly
PET Bottle Label Remover Machine Pre-Washing Machine(Optional Choose)
Function:Remove out the labels from the waste PET bottles Function: With hot steam to pre-wash the bottles and
remove out the dirty
Wet Crusher Machine Floating Washing Tank
Function: Crushing the bottles into small flakes, wet working Function: Washing out the floating caps, rings and dirty from
with water the bottle flakes
Hot Washing Tank Horizontal Dewatering Machine
Function: With hot water and chemical reagent to washing off the oil Function: Remove the water from the bottle flakes
glue and dirty

Hot Air Dryer Machine Zig-zag Air Classifier Function: Remove residual fines/dust/labels Function: Remove residual fines/dust/labels

Packaging & Shipping
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Our Services
1.Pre-sale: we given client the details technician offer, sign the sales contract etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always update the new technology to every customer
FAQ
1.How to Choose proper Products you want?
Please tell us as detail as what you want
What's your raw material it is
What's the final products you want to produce
What capacity you want it performance
2.How to Control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment
