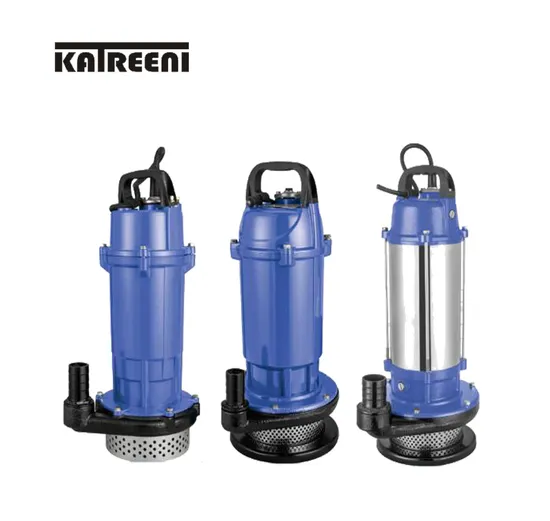

Katreeni Qdx 1hp Aluminium Casing Submersible Open Well Pump with Float Switch

Product Description

Product Description
Application
-Small electrical irrigation and drainage equipments
-Particularly applied in urban well water pumping, field irrigation and drainage, garden irrigation and household water supply, as well as drainage of industrial accumulated water, water supply and drainage for construction, livestcok breeding, etc.
Specification&Features
-Insulation Class: B
-Protection Class: IP68
-Winding: Copper wire
-Thermal protector: Built-in
-Shaft: Stainless steel welded/electroplated iron
Operating Conditions
-Immersion depth: 0.5M-5M
-Max. Liquid temperature: +40 ºC
-Liquid pH value: 6.5~8
-Max. sand content: 0.1%
-Passage of suspended solid: up to 0.2mmPerformance Data & Curve
Performance Data

MODEL	POWER		Max. Flow (m3/h)	Max. Head (m)	Rated Flow (m3/h)	Rated Head (m)	Outlet size (Inch)	Packing Dim.(L*W*H)
	KW	HP
QDX1.5-12-0.25A/B	0.25	0.37	4.6	13.2	1.5	12	1''	196*144*360
QDX1.5-16-0.37A/B	0.37	0.5	5.8	17.4	1.5	16	1''	196*144*365
QDX6-10-0.37A/B	0.37	0.5	13	12	6	10	1.5''	209*145*371
QDX3-20-0.55A/B	0.55	0.75	7.7	20	3	20	1''	205*158*379
QDX10-10-0.55A/B	0.55	0.75	16.8	12.2	10	10	1.5''	223*159*393
QDX15-7-0.55A/B	0.55	0.75	21.5	9.9	15	7	2''	233*158*391
QDX1.5-25-0.55A/B	0.55	0.75	6.7	25.4	1.5	25	1''	240*190*378
QDX1.5-32-0.75A/B	0.75	1	7.9	34	1.5	32	1''	240*190*398
QDX7-18-0.75A/B	0.75	1	19.6	20.6	7	18	1.5''/2''	235*159*401
QDX30-6-0.75A/B	0.75	1	44	8.6	30	6	3''	267*184*434
QDX15-10-0.75A/B	0.75	1	26	12.7	15	10	2.5''	233*170*411
QDX10-16-0.75A/B	0.75	1	17.3	18.4	10	16	2''	235*159*401
QDX6-26-1.1A/B	1.1	1.5	14	27.1	6	26	1.5''	254*190*451
QDX15-15-1.1A/B	1.1	1.5	26.8	17.5	15	15	2''/2.5''	247*172*457
QDX40-7-1.1A/B	1.1	1.5	48.7	9.8	40	7	3''	276*194*484
QDX15-18-1.5A/B	1.5	2	30.8	20	15	18	2''/2.5''	247*172*457
QDX40-9-1.5A/B	1.5	2	51.7	13.7	40	9	3''	280*196*480
QDX50-7-1.5A/B	1.5	2	68	11.9	50	7	4''	530*196*310
QDX65-8-2.2A/B	2.2	3	84	14	65	8	4''	364*230*544
QDX70-9-3A	3	4	95	13	70	9	5''	480*280*250
QDX80-4-4A	4	5.5	102	12	80	7	6''	540*330*250

Performance Curve
Production Corner
Production of this serie
Packaging & Shipping
Optional Package
Transport LineCompany Profile
Introduction
KATREENI has been operating in the water pump industry for years. It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.
We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.
We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.
Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving. Certificates
Exhibition
Workshop Corner
FAQ
FAQ
1. Q: What is your warranty?
A: 12-18 months' warrantv, depending on product and market
2. Q: What is your MOQ?
A: Sample order is acceptable.
3.Q: What's your payment terms?
A: T/T, L/C, D/P...
4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.
5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.
6.Q:Can you accept customized products?
A: Yes, we accept special requirement.
7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
