Hydraulic Concrete Cement Wall Cutting Saw Brick Wall Machine
| US$800.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YG-800
Type
Hydraulic Cutting Machine
Usage
Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
Source Voltage
220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE
Name
Wall Cutting Machine
Color
Customized
Max.Working Pressure
200bar/20MPa
Gearing
Gear
Power
25kw
MOQ
1PC
Saw Blade Diameter
800-1600mm
Cutting Efficiency
3-6m/H
Max.Oil Flow Rate
100L/Min
Walking Type
Two Side Walking
Transport Package
Wooden Cases
Specification
drum size 800*850
Trademark
Yugong
Origin
China
HS Code
8429401900
Production Capacity
1000
Product Description
Track Chaser Cutter Concrete Wall Cutting Machine Diamond Wall SawProduct description:
Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.
Product parameters:
Hydraulic oil pump:
| Model | 600TM | 700TM |
| Max.power | 25KW | 30KW |
| Motor cooling method | Air cooling | water cooling |
| Rated voltatge | 380V 50HZ | 380V-420V 50HZ-60HZ |
| Pressure stages | 3 | 3 |
| Max.operating pressure | 200bar/20Mpa | 210bar/21Mpa |
| Oil flow rate | 30-80L/min | 40-100L/min |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm |
| Weight | 220kg | 140kg |
Wall saw:
| Model | 600TM | 700TM |
| Saw blade diamteter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm |
| Max.working pressure | 180bar/18Mpa | 200bar/20Mpa |
| Max.oil flow rate | 100l/min | 100l/min |
| Gearing | Gear | Gear |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm |
| Weight | 38kg | 39kg |
Machine configuration:

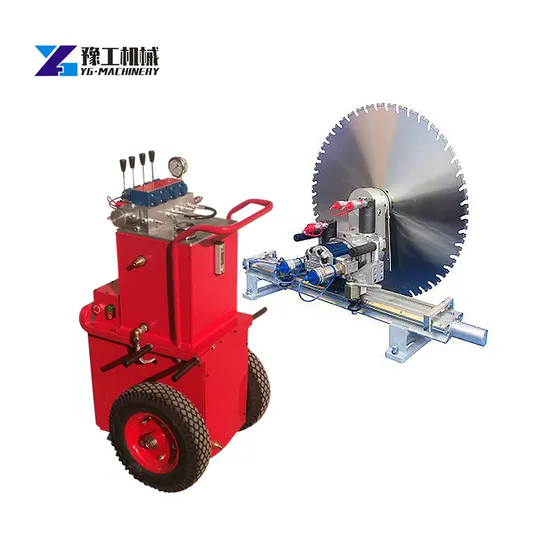

The whole sets of machine consists of hydraulic pump,machine head ,oil pipe,slide rail ,slide rail mounting bracket, saw, saw cover
Product features
1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.
Working show
Packaging and shipping
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.
