Series MW22 High Temperature Type Lifting Magnet for Slab

Product Description

Profile
Lifting magnet for billet, rectangular billet and slab are series MW22,MW32,MW42,MW92.
Main features: MW22 is single coil structure, MW32 is antipode double coil structure, MW42 is homopolarity coil structure,MW92 is active magnetic pole type single coil structure.

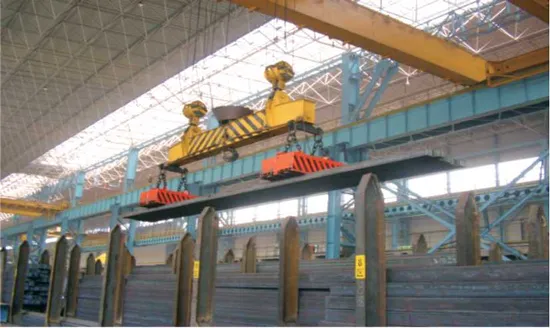

MW22 is most widely used rectangular electromagnets, suitable for lifting and transporting square billet, steel ingot , large blooming billet and so on, and also used for lifting and transporting round billet, profiled bar and so on. Different magnetic circuits are adopted for different type of steels.

MW32 is widely used oblong electromagnets, suitable for lifting and transporting square billet, steel ingot , large blooming billet and so on, and also used for lifting and transporting round billet, profiled bar and so on. Different magnetic circuits are adopted for different type of steels,
MW42 Adopts "" type magnetic structure. It can generate strong attraction force over small attraction area. It is suitable for lifting and transporting multiple pieces of small square billet and track beam, which is strong attraction force type electromagnet.

MW92 is mainly used to Billets, bloom, steel ingot, profile steel. Main features:The movable pole block, which is installed in the magnetic pole of electromagnet, can stretch out and draw back freely after contacting the attached materials. Consequently it can obtain the biggest contact area. However, this series is not often proposed for the movable magnet may cause bigger maintenance and easily be blocked.
Guide for Model Selection
1,What's the attached material? Choose the suitable series according to the attached material.
2,The specification of material attracted? such as weight,length,width or number.
3,The specification of hoist, such as: tonnage, height and brake type of hook.
4,The application environment, such as temperature of material attached, indoor or outdoor.
5,The cycle duty: when exceed 60%, choose high frequency type.
6, Selection of corollary equipment: cable reel and control cabinet
KMD Introduction:
Established year: 1997
Staffs: 800
Workshop area: 90000 m2
Engineer team: 180
Exported countries: 50, including India, Pakistan, Malaysia, Vietnam, Myanmar, Laos, Phillipines, Indonesia, USA, Spain, Turkey, Russia, Ukrain, Saudi Arabia, etc.
Certifications: CE, ISO9001, ISA
Exhibition all over the world
Clients
Guided by managing conception as
Guided the direction by advanced technology,
Exploited the market by perfect service
Building the reputation by excellent quality.
FAQ
Q1.Are you factory?
Yes. We are lifting electromagnet factory, and we also factory for electromagnet stirrer, control cabinet, cable reel, electromagnetic separator, and mandrel since 1997. With 23 years history our clients are more than 2000, and export more than 50 countries. Our plant area is more than 60,000 square meters.
Q2.How fast can i get the quotation?
A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q3. What's your payment terms?
A: T/T, DP or L/C AT SIGHT for first cooperation..

Q4.Can I get sample before order?
A: Yes, of course. After price confirmation, you can require for samples to check our quality, but the freight is on your site.
Q5. Do you accept OEM?
A: Yes. We accept custom design OEM.

Q6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
