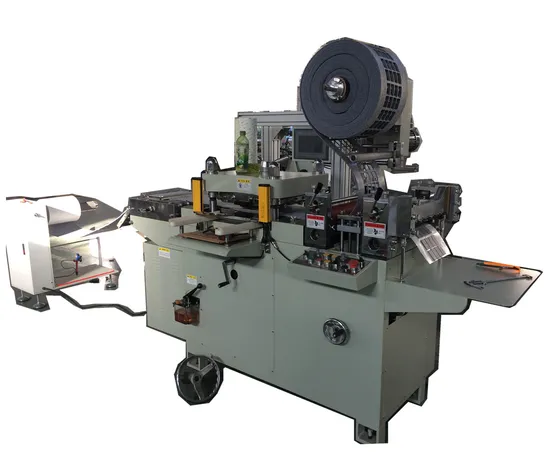

Automatic Computerized PLC Control Sticker Making Machine

Product Description

sticker making machine
Functional Characteristics:
320B die cutting machine is developed on the basis of imported cutting machine.
The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation, thus prolonging the life span of the machine,
Enhacing the utilization ratio of the machine. Press itinerary and pull the material length are automatically adjusted by screen, make mold-adjustment more convenient

sticker making machine Scope applicable:
The product is developed aiming at die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, vinyl, polyester etc.
Screen protective film in the electronic industry.

Model: DP-320B
Max Feeding Width ( mm ): 320
Cutting Area ( mm ): 320*300
Cutting Speed ( T/M): 30-170
Position Accuracy ( mm ): ± 0.1
Power of Main Engine ( kw ): 2.2
Size ( mm ): 2300*1250*1500
Voltage (V ): 220

Model	Max Feeding Width ( mm )	Cutting Area ( mm )	Cutting Speed ( T/M)	Position Accuracy ( mm )	Power of Main Engine ( kw )	Size ( mm )	Voltage (V )
DP-320B sticker making machine	320	320*300	30-120	±0.1	3	2400*1290*1610	380
Servo Motor		Japan mitsubishi
PLC control		Japan mitsubishi
touch screen		Taiwan Weilun
transducer		Taiwan Shilin
cutting tool clutch		Taiwan Tangying
main machine bearing		NSK
packing :
wooden case packing of unwinder		160X95X122		1	500	520
wooden case packing of main machine		230X128X174		1	1600	1630
Standard fuinction
1. ,unwinding machine
2, wind attract
3, Die Cutting
4, waste Draining
5, Conveyor belt
Delivery time
35 working days
More Machine Picture as below :
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

Packing		pack size		QTY	NET weight	Gross weight
Wooden case		157X81X122CM		1	400	500
Wooden case		215X118X174CM		1	1400	1500
Total		5.97CBM		2 case	1800KG	2000KG
