Anti-Slip FRP Swimming Pool Grating Overflow Grating Fiberglass Grating Panels

Product Description

Anti-Slip FRP Swimming Pool Grating Overflow Grating Fiberglass Grating Panels

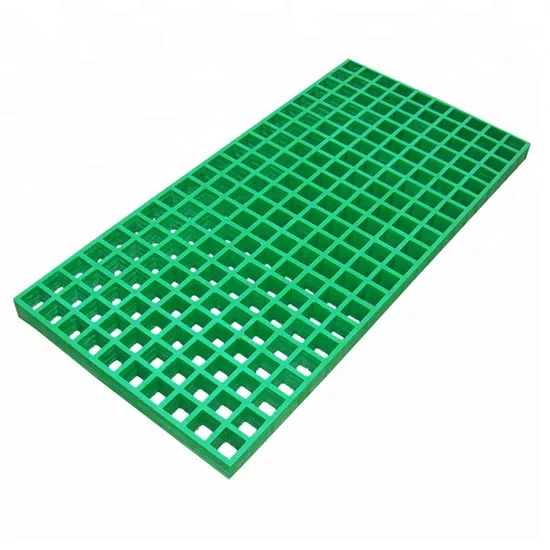

FRP Molded Grating is made from polyester resin and continuous fiberglass roving, heat cured in a mold, in a hand-crafted layer-by-layer operation to produce the desired thickness and panel size. Grating produced using this technique have 30-35% (total weight) glass fiber reinforcement. The one-piece interwoven mesh construction of the molded grating produces a product with optimal corrosion resistance and bi-directional strength. Since the grating is "cast" in one piece, there is no mechanical joint between bearing bars, unlike pultruded grating where the glued joints can give way in heavy continuous traffic or after prologged service.
The high percentage of resin (65%) in molded grating provides superior corrosion resistance and optimal impact resistance. Molded fiberglass gratings with a square mesh pattern offer increased load capacity and panel utilization due to its bi-directional nature.
And for different application, the surface can be chosed from smooth, concave, gritted or solid-top.
Specification for FRP grating is as following:

Fiberglass Reinforced Plastic (FRP) Gratings
Type	Mesh Size (mm)	Height (mm)	Bar Thickness (mm)	Full Panel Size (m)	Net Weight (Kg/m²)	Load-bearing
20	50*50	20	The upper thickness is 7, and the lower thickness is 5	1.22*3.66	8	trench cover
25	43*43	25		1.22*3.66	11	Stair treads/tree grates/load-bearing walking bicycles
	40*40	25		1.22*3.66	11
	38*38	25		1.22*3.66	12
30	40*40	30		1.22*3.66	16	drainage ditch,span<30cm and bearing 1.5 ton,span<50cm and bearing 1 ton
	38*38	30		1.22*3.66	17
38	40*40	38		1.22*3.66	20	platform,span<30cm and bearing 3 ton
	38*38	38		1.22*3.66	22
50	50*50	50		1.22*3.66	24	gutter drainage ditch,span<30cm and bearing 4 ton
	38*38	50		1.22*3.66	26
25 crossed grid	50*25	25		1.22*3.66	13	breeding,span<30cm and bearing 0.8 ton,span<50cm and bearing 0.3 ton
	38*19	25		1.22*3.66	17
30 crossed grid	50*25	30		1.22*3.66	18	platform,span<30cm and bearing 1 ton,span<50cm and bearing 0.5 ton

Features of our fiberglass gratings:
High Strength Light Weight Fire Retardant Corrosion Resistant UV Resistance and Anti-aging High Impact and Fatigue Strength Non Conductive, Low Thermal Conductivity Cost Effective, Easy to Install and Maintenance Application for Anti-Slip FRP Swimming Pool Grating Overflow Grating Fiberglass Grating Panels
FRP gratings are usually used as floor grating, marina walkway, roof walkway, catwalk grating, work platforms, offshore platforms, decks, stair treads, fencing, tree guard, drain channel cover, ditch covers, etc.
And they are widely used in petroleum, water conservancy, textile printing and dyeing, food processing, electronics industry, sewage treatment, shipbuilding, civil construction, power engineering, power substations, and chemical industries.
To find the specification and more detailed properties of our FRP grating, please feel free to contact us.
Package for FRP molded grating:
1. For FRP grating, we always pack them on pallet with film wrap and corner guard protect.
2. We can do customized package as your requirement.
Welcome to inquire, we will feedback within 24 hours.
