2FT 3FT 4FT 5FT China SMD 9W 12W 20W 36W Fluorescent Lamp T10 110V 220V 3FT 15W 22W 30W 18-19W T5 T8 LED Tube Light Lamp

Product Description

2ft 3ft 4ft 5ft China SMD 9W 12W 20W 36W Fluorescent lamp T10 110V 220V 3FT 15W 22W 30W 18-19W T5 T8 LED Tube Light Lamp
Product Description

Drawing:
Features: > Pretty and elegant appearance, G13 fixed or rotating end cap is available.
> Colorful metal rings available, Blue, Green, Silver, Red and Gold.
> ODM service available, Laser print customer LOGO and customer exclusive lable.
> 6063 Aluminum shell, Japan PC cover, long lifespan.
> Professional design of optics, no shadow, no light spot.
> Mainly used in factory, supermarket, carpark, hospital and school.
Electrical: > Power: 2ft=6W/9W, 3ft=12W, 4ft=15W/18W/20W, 5ft=20W/25W/30W. > Input voltage: AC100-240V, AC100-277V. > Power Factor : >0.95, THD<15%. > Power efficiency: >90%.> Starting Time: <0.5S. > Switching Cycle before Failure: >100,000 times. Optical: > High bright 2835 SMD LEDs, 100lm/W, 130lm/W, 160lm/W, 170lm/W.
> CCT: WW:3000K, NW: 4000K, PW: 5000K, CW: 6000K.
> CRI: Ra80 or CRI90. > Bean angle 180°.
> Cover: Clear or Milky PC
> Rotatable end cap: Available
Datasheet:

item	L=0.6M/2ft	L=0.9M/3ft	L=1.2M/4ft	L=1.5M/5ft
Rated powed	9W	12W	18W	24W
LED Tpye/Qty	96pcs	96pcs	144pcs	180pcs
Lumen Efficacy	100/130/160Lm/W	100/130/160Lm/W	100/130/160Lm/W	100/130/160Lm/W
Luminous Flux	900~1440Lm	1200~1920Lm	1800~2880Lm	2400~3840Lm
Color Index	Ra>80
Color Temperature	Single color:WW:3000K NW:4000 PW:5000K CW:6000K
Beam Angle	120 Degree
Power Factor	PF>0.95
Input Voltage	AC200~240V/50Hz
Housing material	Aluminum + PC cover
Starting time	0.5
Temperature	Operation:-15°C~+50°C Storage:-25°C~+55°C
Lumen Maintenance @6000hrs	80%
Switch cycle befor failure	100,000
Life Span	50,000 hours
Warranty	5 Years

Dimension:
Type 2ft(0.6m) 3ft(0.9m) 4ft(1.2m) 5ft(1.5m) 8ft(2.4m) A B

602mm	906mm	1213mm	1513mm	2362mm
588mm	892mm	1198mm	1498mm	2348mm

Application: > Commercial Complexes and other Public facilities
> Schools, Colleges, Universities,supermarkets, offices,builder,metro
> Places where need energy saving and high color rendering index lighting
> High maintenance or temperature sensitive environments

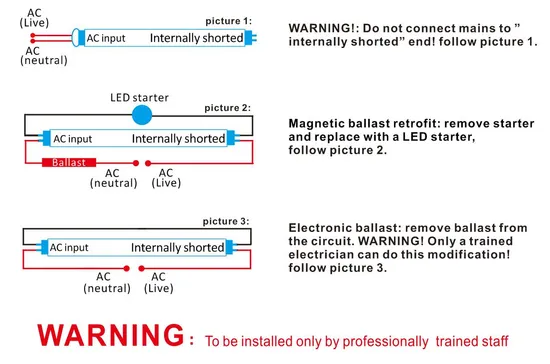

Installation Instructions
Package:

Product Type	Power	Carton Size	Qty./Carton	Gross Weight
60cm/2ft	6W/9W	L66*W22*H22	25pcs	6.7Kgs
90cm/3ft	12W	L95*W22*H22	25pcs	10.6Kgs
120cm/4ft	12/18/20W	L125*W22*H22	25pcs	12.9Kgs
150cm/5ft	20/25/30W	L156*W22*H22	25pcs	14.9Kgs

Company Profile Shenzhen Focus Lighting Co., Ltd. is specializing in LED lighting. We have a R&D team with experienced and professional, and perfect testing instruments and equipment to make products form R&D, production, testing, to the final delivery, formed a complete set of produce quality control system.
We mainly produce LED track light,LED downlight,LED PAR light commercial and industrial lighting Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers.Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
FAQ Q: What's your MOQ? Can I order one piece to test?
A: Yes, MOQ=1pcs. Sample test available.
Q: What about the lead time?
A: <50pcs, we can ship in 5-7 workdays after payment made. 50-500pcs, we can ship in 10-12 working days after payment made.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Ship air to door takes around 15 days.
Q: What happens if my product failures?
A: The product failure rate is around 0.3%. If the products are damaged during transportation or test broke, we will replace new lights to you.
Q: Are you a trader or factory?
A: Yes, we produce LED lighting since 2010 and mainly sold in China. From 2012, we began to produce and export LED lighting.
Q: Can I visit your factory? Where is your factory located?
A: Yes. We are located in Shenzhen city, welcome to visit our factory.
