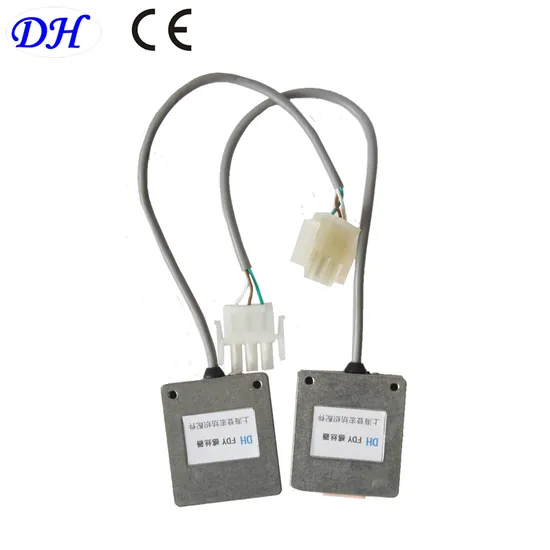

FDY Optical Yarn Sensor for FDY Spinning Machines

Product Description

Product description:

ITEM Spinning Machine FDY Optical Yarn Sensor Material Aluminmun housing Current ouput PNP output Working Voltage 18~30 VDC Working current MAX 1.2 A Static current < 20 mA Response time < 0.1 second Guarantee One year without operation mistake Origin Shanghai, China Application Murata texile machines

Circuit connection:
Optical Yarn sensors are able to be used in Winding, doubling, texturing or Elasticizers and so on.
Main Function
Optical yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will indicate a default situation and give the information to the operator by means of LED or give signal to stop device or yarn cutter.
Working Principle
As the thread passes through an infrared beam, the variations are processed by the electronic circuits of the optical yarn sensor.
Company Information:
Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.
Function and Application:
In Chemical Fiber machine, fore-spinning machines, when the breakage of stoppage of one or more yarns are detected by the sensor, the sensor will give the operate on duty an alarm with a visible LED flaring signal. It will simultaneously send out an electrical signal to the yarn cutter in order to cut off the broken yarn and grip the cut end by the device attached to the yarn cutter itself. In winding, spinning, twisting machines, the yarn should be cut off when the bobbin is full.
Samples are free. You only pay shipping fee.
Samples: 1-3 working days
Order: 3-7 working days
Our srtongest point is that we consult. So anything you want to know about our products, please ask us!
