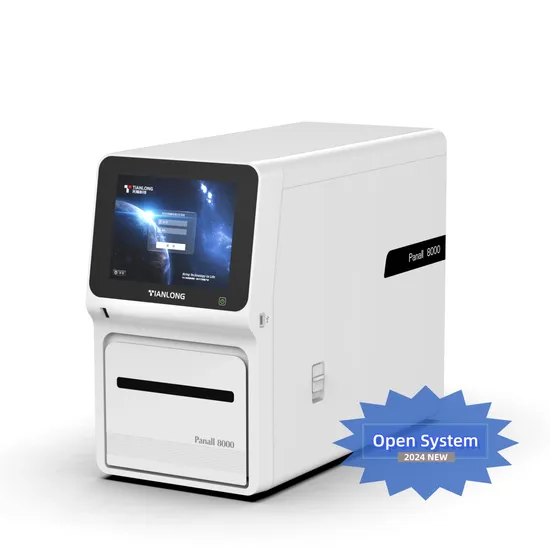

Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System

Product Description

Product Description Tianlong Panall 8000 is an open system that enables laboratories to program user-defined PCR analysis protocols. Laboratories can use user-defined protocols in addition to those developed by Tianlong. The simple and efficient design of the Tianlong Panall 8000 allows you to test a wide range of sample types and meet emerging diagnostic requirements through customized reagents. Tianlong intends to work with our partners to bring more new tests to the Panall 8000 for detection of a broad range of disease categories.
Panall 8000 has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
Features
Compatible with PCR reagents from different manufactures
Empty PCR tubes work with your PCR reagents
Customize collaboration mode for a more diversified menu
Tianlong will collaborate with our partners to jointly expand the testing menu. Tianlong can customize nucleic acid extraction reagents to match your PCR reagents for more business possibilities.
Available for more application scenarios
An open system with a diversified testing menu can meet your emerging diagnostic reguirements and apply in more scenarios. Tianlong Panall 8000 compatible with your reagents can optimize the detection process with minimal hands-on time and make detection more efficient

Product Parameters

Model	Open System Panall 8000
Sample Throughput	1~8 samples at the same time
Pipetting Range	20μL ~250μL
Detection time	1~2 hours,relying on the reagent
Channel and Available Fluorescein	Channel 1: FAM, SYBR Green I, etc. Channel 2: VIC, HEX, TET, JOE, etc. Channel 3: ROX, Texas Red, etc. Channel 4: Cy5, etc.
Pipetting Performance	20μL ≤ V<40μL: accuracy: A≤5.0%, repeatability: CV≤3.0% 40μL ≤ V<100μL: accuracy: A≤3.0%, repeatability: CV≤1.5% V ≥100μL: accuracy: A≤1.0%, repeatability: CV≤1.0%
Extraction Heating Rate	Average heating rate: ≥ 1.5ºC/s;
Extraction Temperature Accuracy	≤ 1.0ºC
PCR Heating Rate	Average heating rate: ≥ 4.5ºC/s; Maximum heating rate: ≥ 6.1ºC/s
PCR Cooling Rate	Average cooling rate: ≥ 3.5ºC/s; Maximum cooling rate: ≥ 5.0ºC/s.
PCR Temperature Accuracy	≤ 0.1ºC
Sample Testing Linearity and Repeatability	Linear correlation: /r/ ≥ 0.998 Repeatability: CV≤ 1.5%
Information Management	Sample information: with scanner inside, Panall 8000 can scan and record the sample information; Reagent information: visual system can automatically identify the kit information and run the corresponding program
Minimized Contamination	Directional exhaust & negative pressure system; HEPA filtration; UV disinfection; Shortest fixed path for sample operation
Data Storage	1000 experiment files can be stored.
Language	Chinese and English
Power Supply and Power Consumption	AC 100~240V, 50/60Hz; 1200VA
Communication Specification	Internet Port: TCP/IP protocol, Ethernet connection USB Port: USB 2.0
Dimension	750mm(L) × 350mm (W) × 600mm (H)
Weight	80Kg
