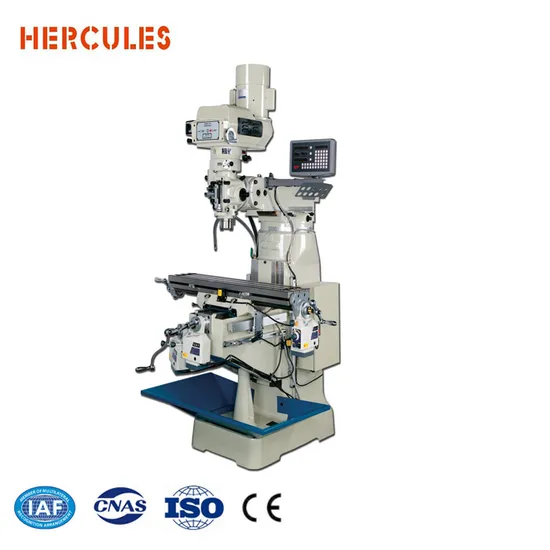

Custom Parts Multitasking (MTMs) Vertical Turret Milling Machine
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M2V
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Pallet
Specification
1950*1470*2300
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
2000sets/Month
Product Description
Conventional M3V Milling machine
and here is the specification:
| Model | M2V | M3V | M4VA | M4VB | M5SV | M5V |
| Precision High Accuracy Series | ||||||
| Table size(L*W)(mm) | 1067x230 | 1270x254 | 1270x254 | 1270x254 | 1370x305 | 1370x305 |
| Max.load of table (kg) | 300 | 300 | 300 | 300 | 300 | 350 |
| X axis(mm) | 720 660 with power feed | 900 810 with power feed | 900 810 with power feed | 900 810 with power feed | 1000 910 with power feed | 900 780 with power feed |
| Y axis(mm) | 330 | 380 | 380 | 380 | 380 | 420 |
| Z axis (mm) | 360 | 360 | 360 | 360 | 360 | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x75 |
| Distance between spindle and table(mm) | 50-410 | 50-410 | 50-410 | 50-410 | 50-410 | 100-480 |
| Ram travel (mm) | 380 | 520 | 520 | 520 | 520 | 660 |
| Travel of spindle quill (mm) | 127 | 127 | 127 | 127 | 127 | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 70-3600rpm 10steps | 70-3600rpm 10steps |
| Spindle hole taper | R8 / NT30(optional) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | NT40 | NT40 |
| Main Motor | 3HP | 3HP | 3HP | 3HP | 5HP | 5HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±90º forward and backward±45º | left and right±45º | left and right±45º |
| Guiding tracks(X.Y.Z) | X/Y/Z all dovetail | X/Y/Z all dovetail | X/Z dovetail and Y square | X dovetail and Y/Z square | X dovetail and Y/Z square | X dovetail and Y/Z square |
| Dimension(L*W*H)(mm) | 1550x1500x2100 | 1750x1500x2100 | 1750x1650x2150 | 1750x1650x2150 | 1850x1650x2300 | 1850x1650x2300 |
| Milling head | Round step milling head | Round step milling head | Round step milling head | Round step milling head | Square head with side brake | Square head with side brake |
| Weight (kg) | 950 | 1200 | 1250 | 1300 | 1375 | 1450 |
| Optional milling head : Round step milling head ; Square head with side brake milling head ; Variable stepless milling head | ||||||
| M4VA X/Z axis Dovetail way,Y Square way | ||||||
| M4VB X axis Dovetail way, Y/Z Square way | ||||||
| Hercules Machinery Equipment Ltd. | ||||||
