Concrete Mixer and Pump Combination 30m3/H Portable Concrete Batch Plant

Product Description

Beton Mixer Mobile Concrete Mixer Cement Construction Equipment Trailer Concrete Mixer Pump
Product Description

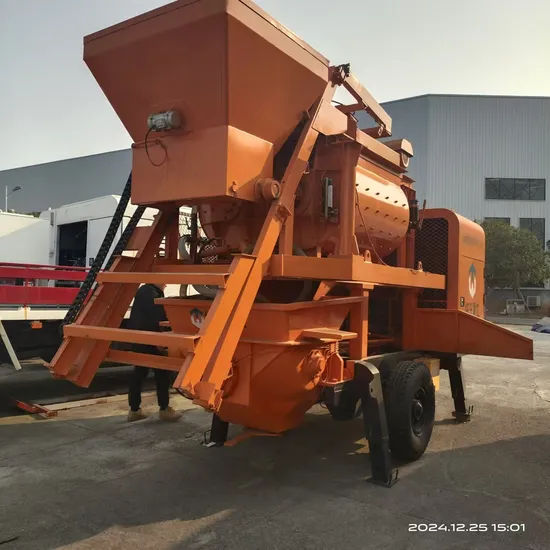

Concrete Pump with Concrete Mixer In One Machine is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.
Concrete mixer with pump into one body, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.
Detailed Photos
Concrete pump with Mixer Features:
The perfect combination of mixing and pumping, it's a one new equipment gathering function of lifting gravel material, mixing, and pumping, the whole process completed by an operator, significant saves in labor costs, at least saves 3-4 name labors for the construction, and efficiency can be increased 4-6 times;
Conveniently and flexibly moving, very suitable for removing between the multi-site work.
High output pressure, can meet high-rise buildings and the constructions of long-distance transport requirements.
Apply for advanced S valve to change direction, better meet to transfer the fine aggregate concrete.
Have Suction pumping function to minimize pipe blockage.
Electrical part adopts PLC control, with the best handling characteristics.
Glasses plate and cutting ring with high hardness wear-resistant alloy material and longer life.
With automatic centralized lubrication system, greatly extending the life of rotating parts.
Hydraulic cooling using advanced air-cooling system, no need water, easy to use.
Friction between the rollers by a gear wheel, reliable non-skid.
Electric cabinet equipped with a wireless remote control handle, easy to operate.


Product Parameters

Item	JB30	JB40
Max.Theoretical Concrete Output(m3/h)	30	40
Max Concrete outlet Pressure (Mpa)	10	10
Outlet diameter(mm)	100	150
Hopper Capacity(L)	700	700
Power(KW)	78	82
Conveying Cylinder Diameter (mm)	110/1000	100/1000
Concrete Cylinder Diameter (mm)	180/1000	180/1000
Max Conveying Distance (vertical Height/Horizontal Distance) (m)	150/500m	90/300
Pipe Cleaning Mode	Washing	Washing
Total Weight (kg)	5000	5500
Discharging capacity	350L	450L
Feeding capacity	560L	650L

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping
Certifications


Our Advantages
FAQ

1. Are you a manufacturer, trading company, or a third party?
We are a manufacturer with 15 years of manufacturing experience
2. Can the machine be customized to our needs, such as put on our logo?
Our faith is to Get The Right Equipment for the Job, Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If I will need to stay at your place for a few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take a long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the device can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come to visit our company.

6. How can I get to your factory?
We can pick you up at the airport.
7. May I know which payment will be accepted by your company?
So far 100%T/T before shipment, 30% deposit paid by T/T, and balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred with your overseas customer in time?
The warranty of our machine is typically 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts are delivered as soon as possible.
9. After we place an order, will you arrange the installation of the machine at present?
All the machines will be tested well before being delivered, so almost of them can be used directly, also our machines are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the costs will be be
charged by you.
