Ygl180g Full Hydraulic Crawler Anchor Engineering Drilling Rig for Sale

Product Description

Product Description

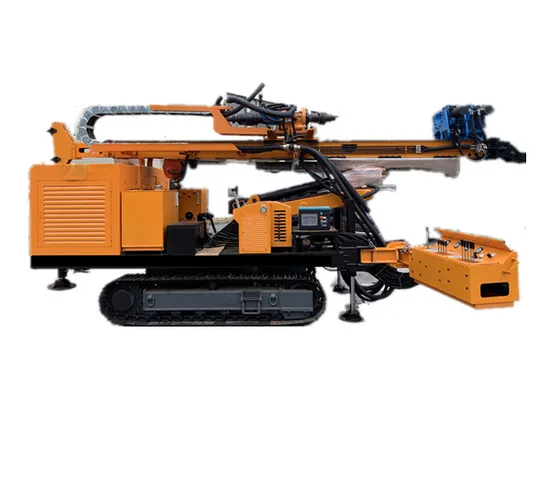

Product ProfileYGL-180G is one kind of full hydraulic power head type drilling rig. It is mounted on a crawler chassis, driven by full hydraulic system which is the common borehole machine for vertical or angle hole in drill work. It can be satisfied with different drilling techniques and methods, so it has widely application to resolve all the difficulties during the drill work even in loose cover ground, broken area or gravel area.YGL-180G is mainly used in drill work of geothermal hole, hole of high building deep basement foundation anchoring and reinforcement groundwork. It is also applied in drilling the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering such as the side slope of dam construction, railways, highways etc. Prevention of landslides, rock collapse disaster control projects; and to meet the tunnel pipe roof support holes, grouting reinforcement holes, small pile holes, hydrology well survey and construction.
FeaturesStrong drill ability, wide application, long stroke, fast drill speed, easy accidence handling, high boring efficiency.Drill head is available to change speed by gear or hydraulic. It is satisfied with various drill techniques: a. Dry auger drill
b. Down-The-Hole hammer drill
c. Mud forward circle drill
d. Medium reverse circle drill
e. ODEX tools (casing pipe following) drill with DTH hammerCrawler chassis with turning platform system, make it easy and rapidly to move and get hole position.It installs a hydraulic clamp & breakout system in order to automatic wrench the drill pipe and tools. Both assistant time and lobar intensity are reduced during work.It has drill arm which is able to adjust mast in different angle and height without moving drilling rig. Specially for anchoring drill in deep foundation basis.It can install jet grouting device in order to drill enlarge head anchoring work. It is also available for normal simplex, duplex, triplex tube jet grouting drill work.Product Parameters
Specification

Model					YGL-180G
Weight				kg	9000
Overall Dimension(L*W*H)(during transportation)				mm	6350×2200×2950
Ambient temperature				°C	-10~38
Specification of drill
Borehole depth			m		180
End borehole diameter			mm		100-350
Angle of drill			°		0~ -90
Drill head output
Rotary speed	Low speed	rpm			40/80
	High speed	rpm			70/ 140
Max output torque		N.m			8500
Feeding stroke	mm				3500
Feeding force	KN				45
Lifting force	KN				65
Engine/diesel					QSB5.9-C180-33
Engine power			KW		133
Max rotary speed			rpm		2200
Oil Pump
Big oil pump			ml/r		63
Mini oil pump			ml/r		25
Middle pump(accelerate)			ml/r		50
Mast
Feeding stroke			mm		850
Crawler(PD135)
Grounding pressure			MPa		<0.05
Climb ability			°		≯20
Width of crawler plate			mm		400

Product Details
Working Photos
In Dubai In Vietnam In Malaysia
