Vmc850 3-Axis Multi Tool Machining Center Machine

Product Description

Product Description

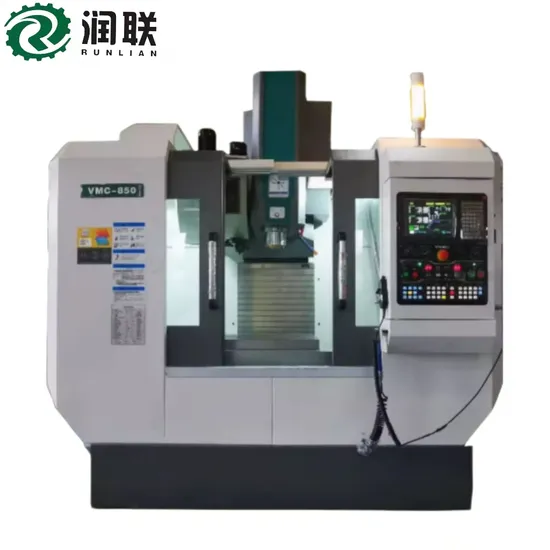

VMC850 3-Axis Multi Tool Machining center machine
VMC850 is a Vertical Machining Center Machine that has vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
Machine Application This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Product Parameters

Specifications	unit	VMC850
X/Y/Z travel	mm	800/500/500
Distance from spindle nose to table surface	mm	120-620
Distance from spindle center to column surface	mm	570
Spindle Power	kw	7.5/11
Spindle speed	rpm	10000
Spindle Taper		BT40 (Φ140)
Positioning Accuracy	mm	±0.003
Repeat Positioning Accuracy	mm	±0.0015
Table Size	mm	1000x500
Max.Table loading	kg	600
T-Slot		5-18-90
X/Y/Z rapid speed	M/min	48/48/48
Cutting Speed	mm/min	1-10000
X/Y/Z axes ball screw diameter		Φ40
X/Y/Z axes servo motor power	kw	2.0/2.0/3.0
Linear width X/Y/Z	mm	35/35/35
Guideway No. X/Y/Z		2/2/2
Slider No. X/Y/Z		4/4/4
Max.power consumption	kw	18
Air	Mpa	0.5-0.7
Power		380V/220V/415V/50(60)Hz/3ph
Ambient Temperature		0ºC-42ºC
Relative humidity		≤80%
Machine Net Weight	T	4.8
Overall Dimension	mm	2570x2375x2430

Detailed Photos
Packaging & Shipping

Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricating grease, and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider. FAQ
Q1:Are you a factory or a Trade Company?
A1: We are Industry and trade integration.

Q2: Is your company accept customization?
A2: Yes, we can undertake to customize and process, including non-standard products(We could make it according to your request.).

Q3: What is the Payment Term?
A3: FOB, CFR, and CIF are all acceptable.

Q4: When is the delivery time?
A4: A) The machine Tools & Accessories could be arranged for delivery within 3 days after your full payment,
B) The Machines Could Be arranged for delivery Within 20 -30 Days(Include Production Time).
Q5: What are the shipping ways?
A5: International express, by air, by sea are all ok.
Q6.What kind of packaging?
A6: We use plywood boxes to ensure the packaging quality is durable, fully protects the safety of the cabinet, the appearance of bright and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun, and rain without moths and so on.
Q7: What is your warranty for the machine?
A7: The warranty for the machine is 12 months. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under a warranty.

Weifang Runlian Economic and Trade Co., Ltd. Was established in 2011 in China, is a professional high-end machine tool equipment and accessories enterprise, Including metal cutting machine, metal cutting machine tools, Grinding Machine, Grinding tool, Measuring Tool, Machine function parts, numerical control devices (CNC), Metal forming machine, Lubricating grease and mechanical processing technology consulting business.
In order of market demand and specific technical requirements, we are professional our lubricants series and CNC, VMC, GMC, CNC flat lathe, CNC slant lathe, CNC EDM, CNC tool grinder, engraving milling machine, Zero Point positioning system, CNC energy saving fan, portable fuel dispenser, CNC tool car, oil water separator, chip sludge removal machine, cutting fluid filling machine, 4th axis rotary table, 90 degree angle head,OEM milling head,tool holders, parallel block, balance level, parallels vise, CNC tool box, portable EDM broken tap remover, vertical horizontal holder device and directly provide high quality products and professional after-sales services for the manufacturing industry.
