Hot Sale Good Price Sludge Dewatering Screw Filter Press Sludge Dehydrator Machine

Product Description

Product Description
IHot Sale Good price Sludge Dewatering Screw Filter Press Sludge Dehydrator Machine
Product Introduction
The main body of the dehydrator is composed of a filter body and a spiral shaft, and the filter body is divided into two parts: a concentration section and a dehydration section. So, when the sludge enters the filter body, the relative movement of the fixed ring and the moving ring is used to quickly discharge the filtrate through the gap between the stacked plates, rapidly concentrate, and push the sludge towards the dewatering section. When the sludge enters the dewatering section, the space inside the filter chamber continuously shrinks, and the internal pressure of the sludge continuously increases. In addition, the back pressure of the pressure regulator at the outlet of the sludge is used to achieve efficient dewatering, while the sludge is continuously discharged from the machine.
Process
(1) Firstly, the sludge slurry is fed into the V-shaped metering tank of the dewatering machine through a sludge pump, and a portion of it flows back to the sludge slurry tank. The measured sludge enters the flocculation tank.
(2) The sludge enters the flocculation mixing reaction tank, and the drug injection pump injects flocculant. The two liquids are thoroughly mixed to form large alum flowers, which then flow into the filter body, which is driven by a variable frequency motor.
(3) The sludge flowing into the filter body first enters the concentration section, quickly separating a large amount of coagulated sludge from water, and then pushing the sludge to the dewatering section.
(4) In the dehydration section, the relative movement of fixed and moving rings, as well as the continuous increase in pressure inside the filter chamber, are utilized to achieve efficient dehydration, while the sludge is continuously discharged from the outside of the machine
Structure and Principle:

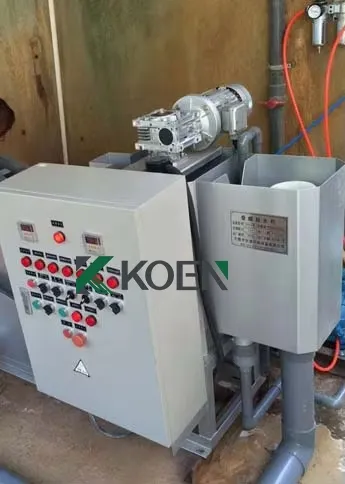

Detailed Photos

Product Parameters

Model	Capacity	10000mg/L	20000mg/L	50000mg/L
KN131	10~14KG/h	1m³/h	0.5m³/h	0.26m³/h
KN201	15~20KG/h	1.5m³/h	0.75m³/h	0.4m³/h
KN202	30~40KG/h	3m³/h	1.5m³/h	0.8m³/h
KN302	100~140KG/h	10m³/h	5m³/h	2.8m³/h
KN303	150~210KG/h	15m³/h	7.5m³/h	4.2m³/h
KN352	200~240KG/h	20m³/h	10m³/h	4.8m³/h
KN353	300~360KG/h	30m³/h	15m³/h	7.2m³/h
KN401	130~160KG/h	13m³/h	6.5m³/h	3.2m³/h
KN402	260~320KG/h	26m³/h	13m³/h	6.4m³/h
KN404	520~640KG/h	52m³/h	26m³/h	12.8m³/h

Company Profile

Packaging and deliver :
Company :
Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use Internationally renowned brand Inverter and PLC . Good quality materials and the best production process
Q2.What's the Payment?
A: T/T, Western Union, L/C, Ali Pay, etc
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:18 months after install .
