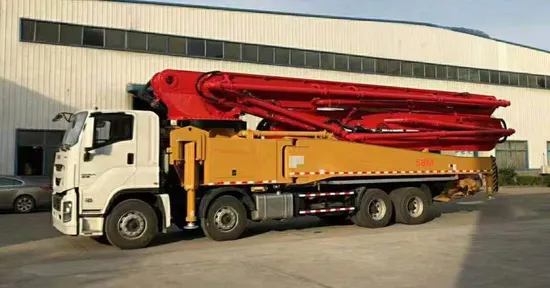

44 Meter 5 Section Used Rz-Fold Boom Pump Concrete Boom Truck Second Hand Pump Truck

Product Description

Product Description
38 meter mixing integrated conveying pump truck source factory
we have model 33 m/38 m/ 44 m/ 47meter

pump truck 44 meter HB-44
Vehicle parameters	vehicle size	L11500*W2550*H3980	mm
	weight	33800kg
Arm support leg parameters	Vertical height of boom	43.2 meter
	Horizontal length	38.7meter
	vertical depth	30.6meter
	Min. unfolded height	12.6 meter
	first arm	length (mm)	8600
		corner	90°
	second arm	length(mm)	7050
		corner	180°
	section 3 arm	length(mm)	7050
		corner	180°
	Section 4 Arm	length(mm)	8200
		corner	196.5°
	Section 5 Arm	length(mm)	8300
		corner	229°
	Rotation angle of turntable		±270°
Pumping system parameters	Theoretical maximum conveying capacity	low pressure m3/h	120/160
	pumping pressure	low pressure/high pressure Mpa	8.2/12
	Pumping frequency	low pressure Times/minute	28/min.
	Inner diameter of conveying cylinder mm		230/260*1650
	Main cylinder inner diameter mm		140*1650
	hydraulic system		Open hydraulic system
	System oil pressure Mpa		32
	Fuel tank capacity L		600
Main configuration and model	main oil pump		Ningbo Heideke/German Rexroth
	Transfer case		Zhuzhou Gear Co/Stiebel
	Arm pump		Ningbo Sikes/German Rexroth
	Reducer		Italian R
	multi-way valve		Ningbo Norm a/HAWE
	remote control
Chassis parameters	Chassis brand and model		Dongfeng/Sinotruk
	Number of chassis bridges		three
	Maximum net power of the engine KW/rpm		400 horsepower
	emission standard		national 6
	Fuel tank capacity L		400
