Stable Performance Gantry Movable Steel Plate Flange CNC Drilling Machine

Product Description

Product Description
X2012 gantry drilling and milling machinne

The machine tool has the characteristics of strong rigidity, symmetrical mechanism and high stability.By optimizing the structure of the basic parts and improving the dynamic performance of the product. Get the perfect combination of high power, high torque, high efficiency and high precision processing. Suitable for shipbuilding,metallurgy,petrochemical,mining machinery,electric power energy, construction machinery, heavy machinery and other large, heavy processing fields.

-gear driven milling head with 7.5kw spindle motor, ensures powerful milling -6 steps spindle speed from 82rpm to 505rpm, for good torque when processing -35° left and right swivel head, with 350mm spindle stroke -rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity -scientific design of electrical circult cabinet for easy maintenance

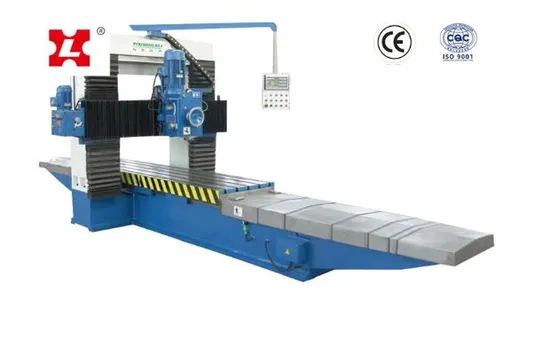

Double column Gantry Plano milling Machine with right-angular milling head

-This machine with good rigidity as a whole and its structure is reliable, the bed guide way had been anti-grinding processed, guide way surface well lubricated to ensure good accuracy.
-The machine is suitable for processing all kinds of elevation parts of black metal and non-ferrous metal, the machine has enough rigidity. The machine operation is convenient, suitable for general mechanical processing workshop. This machine can be equipped with digital display device, the use method is shown in the digital display specification. Detailed Photos

Product Parameters

Specification		Unit	X2010	X2012	X2014
Max.outline	Length	mm	2000/3000/4000
	width	mm	1300	1400	1800
	width	mm	1000	1000/1200
Distance between columns		mm	1440	1600	1920
Table zise	Length		2000/3000/4000
	width		1000	1250
Table feeding speed	Feed		20-360	25-450
	Rapid travel		1050	1300
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head			±35°
Along the cross rail		mm	65/320/890
Side milling head		mm	50/265/730
Power of spindle motor		kw	7.5
Power of table motor		kw	4/5.5/7.5	5.5/7.5
overall size	Length	mm	4550/7000/9000	5000/7000/9000
	width	mm	3200	3550
	Height	mm	2550	2950/3150

Certifications

We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.
Packaging & Shipping

Delivery time: generally 3 months production time after confirmation of order Packing type: machine need to be dismantled to load into container, covered with damp-proof plastic film, then packed in thickened water-proof cover on steel pallet
Company Profile
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.Hope we can built long-term business relationship with you.
Our Service
We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.

FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
