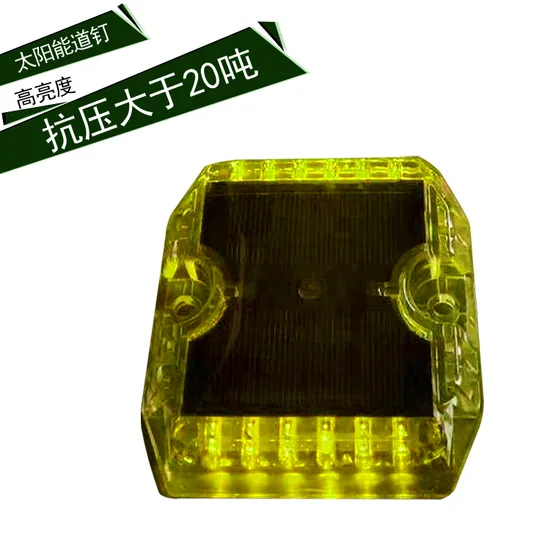

115*102*19mm 12LEDs Tempered Glass Reflect Light Solar Energy Pavement Curve Road Stud

Product Description

WE PROMISE TO OUR AGENTS AND CUSTOMERS:
FACTORY ORIGINAL !
LOWEST PRICE IN CHINA !
HIGH QUALITY ASSURANCE!
AAAAA SUPPLIER IN CHINA !
Product Name: Two Sides 6LEDs Solar Road Stud
Item No.:SGS-001D
Product Materials
Front Cover: Epoxy resin/PET solar panel
Control components:PCB,Lithium battery, LED chips
Crust: Cast iron/ Cast Aluminum Alloy/ Tempered Glass
Encapsulant(material):Expoxy resin
Product Specification
1.solar panel:3V/140MA/0.35W
2.Battery:Ni-Mh rechargeable battery 1.2V/1200mAh, PCM (Protection Circuit Module);
3.Lighting time: 8 hours charge, 72 hours lighting continously;
4.Body Material:Case: Tempered glass, Poly-carbonate (Super-Intensity) , bear weight: 20 Tons;
5.LED:φ5*12pcs super Prevent mist LED,lighting color is optional;
6.LED work status:flashing(2Hz±20%,180times per minute); or steady lighting,Reflectors:PMMA hi vis prismatic lens;
7.Visual range:>1000m,IP Rating / Protection Grade: IP68;
8.Life time:Effective use>5 years;
9.Work temperature:-20ºC~+85ºC.
Usage
Road indication
Ground lighting
Road edge warning
Road/park reminding
Decoration
Package
Produce size: 115*102*19mm
2pcs/box: 0.5kgs/pc; 135*125*50mm
40pcs/carton; carton size: 400*285*270mm
Special Instruction
OEM/ODM are all optional;
Colors are optional,Main colors optional:white,yellow,red,blue,green,orange,purple
Product Photos/Original Design
Quality Assurance Parts: solar panel, Battery, LED Lamp, PCB, Wires
Solar panel:
mono or poly cell crystalline, enough free electron in Silicon atom, the free electron absorb light photon and released, aluminum alloy frame, tempered glass cover, IEC61215, IEC61730 TUV test report, warranty 5 years, life-time with the efficiency: 10 years 100%, 20 years 90%, 30 years 8%;
Battery:
Lithium battery, 1.8*1.8*6.5cm standard size, 800-1000 time circles, made in Japan, wide work temperature, 12 months don't need to charge when in selling; warranty: 2 years, life-time:3-5 years 90% capacity, 5-8 years 80% capacity;
Ni-Mh battery: AA/AAA, Samsung, 800-1200 cycles, made in Korea,wide work temperature, 12 months don't need to charge when in selling; warranty: 2 years, life-time:3-5 years 90% capacity, 5-8 years 80% capacity;
LED Lamp:
Lamp Crust: Aluminum alloy for hot dissipation(not for plastic crust), LED chips: famous brand in high efficiency(high light-electricity transformation); LED chips board: aluminum, to keep hot transmitting,(heat conductivity coefficient:1.5W, thickness:1.0mm)
(Work temperature decide the life-time of LED chips, hot transmitting and dissipation is necessary for a long life-time LED lamp, 36sqcm hot dissipation area for 1W is standard)
Warranty 2 years, life-time: 5 years 100%, 8 years 90%, 10 years 80%
PCB:
Board material: Glass fiber board, Function: battery over-charge and over-discharge protection, Constant current discharge for LED lighting, "LED indicator" for charging status, 5V/1A IC to protect charging current, IC component control for each group of LED lighting; warranty 5 years; life-time: more than 10 years;
Wires:
China Standard 3mm-4mm copper material wire, low resistance and long life-time, DC and AC current allowed, switch controller, E22,E27,B22 LED lamp holder; warranty 5 years, life-time: more than 10 years
Warranty and Service
1. 12 months Warranty for the solar traffic sign. Buy with confidence
2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
3. If item is defective in 1 month, we will send you a replacement without extra charger, or offer refund after we receive the defective item.

FAQ
Q1. Can I have a sample order for led light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time? A:Sample takes 15 days, mass production need one month
Q3. Do you have any MOQ limit for led light order? A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order forled light? A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products? A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty? A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
