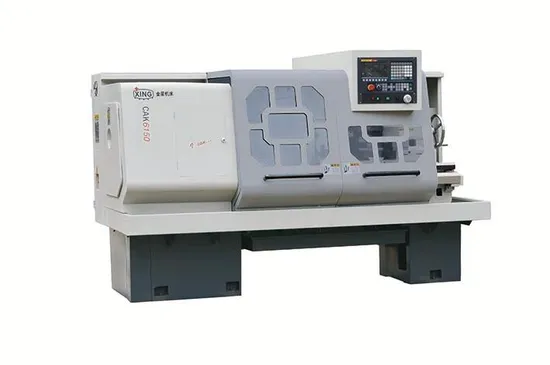

Cak6150 High Precision Horizontal Metal CNC Lathe Machine

Product Description

\Main feature
The guideways are hardened and precision ground·Infinitely variable speed +2-grade gear(manual) of spindle·The system is high in rigidity and accuracy·The machine can smoothly run with low noise·Design of electromechanical integration, easy operation and maintenance
Standard configuration:
GSK system,3-jaw chuck,lighting & cooling systems,spindle&
bedway lubrication system, 4-position electric toolpost
Special configuration:.
lathe tool,gang tool holder,live center,stedy rest, follow rest, pad iron

Parameter
SPECIFICATIONS	CAK6150
Swing diameter over bed	ф500mm
Swing diameter over table	ф250mm
Distance between centers	1000/1500mm
Spindle taper	0.055555556
Spindle nose	C8
Spindle speed	50~1600/2 r/min
Spindle bore	ф72/82
Chuck size	250mm/295mm
Longitudinal stroke	940/1440mm
Cross stroke	250mm/295
Turing tool size	25×25mm
Tailstock stroke	128mm
Tailstock taper	MT5
Rapid feed	3/6,6/6 m/min
Min. setting unit	0.001mm
Repositioning accuracy	X:0.012mm Z:0.016mm
Circle/cylinder	0.005,0.03/300mm
Torque of feed motor	X:6N.m Z:7.5N.m
Power of motor	7.5kW
CNC system	Siemens 808D
N.W/G.W	2130/2350kg,2800/3000
Overall dimensions	2650×1300×1680mm
Package	Veneer box

Product Details:


Packing and Delivery

company information
Shandong Linyi Jinxing Machine Tool Co., Ltd.was founded in 1965 and locates in Shandong Linyi high-new technology development zone. It is national high-new technology enterprise on patents in Shandong province. It owns provincial level high-tech R&D center.
It mainly deals with the development,manufacturing and sales of machine tools. It has the yearly capacity of manufacturing vertical machinning center,CNC milling machine,CNC lathe,common machine tool,multi-purpose machines etc.over ten thousands sets.
The company has passed through ISO9001 Quality System Certificate and owns self-operation right of import and export. some products have passed through CE certificate.Its products are sold widely at home and over more than 30 countries and districts abroad such as USA,Canada,Germany ,Italy,Hungary,Australia,South Africa,Korea and Japan,etc.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technology support :
Professional after-sales service team:
We can Provide Spare parts replacement and repair service
Competitive price:
We can recommend the most suitable machine according to your budget and customer needs, and give you a favorable price.
OEM Accepted:
We can produce design as your requied.please contact us.
We have strict quality control system.please believe our quality.
MOQ: 1 set .
Terms of Payment: T/T (30% in advance and delivery on 100%)
