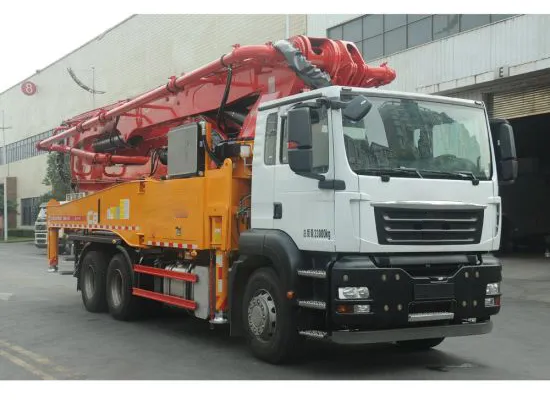

61m Pump Truck Truck Mounted Concrete Line Pump Sym5502thb 620c-10A
| US$80,000.00-120,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SYM5502THB 620C-10A
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
172 M³/H
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Length
14780 mm
Width
2550 mm
Height
4000 mm
Empty Weight
50000 Kg
Vertical Reach
61.1 M
Horizontal Reach
55.9 M
Reach Depth
42.7 M
Output
200/137 M³/H
Pressure
8.3/13 MPa
Transport Package
by Roro, Bulk Cargo or Container Transprot
Specification
52m
Trademark
NEWINDU
Origin
Jiangsu, China
HS Code
84295100
Production Capacity
50 Uint/ Month
Product Description
61m Pump Truck Truck Mounted Concrete Line Pump SYM5502THB 620C-10AFeatures
* Energy-saving Technology
When system pressure reaches 12Mpa: No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
* Anti Overswing Technology To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
* Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Parameters
| Model | SYM5502THB 620C-10A |
| Length | 14780 mm |
| Width | 2550 mm |
| Height | 4000 mm |
| Empty Weight | 50000 kg |
| Vertical Reach | 61.1 m |
| Horizontal Reach | 55.9 m |
| Reach Depth | 42.7 m |
| Output | 200/137 m³/h |
| Pressure | 8.3/13 MPa |
