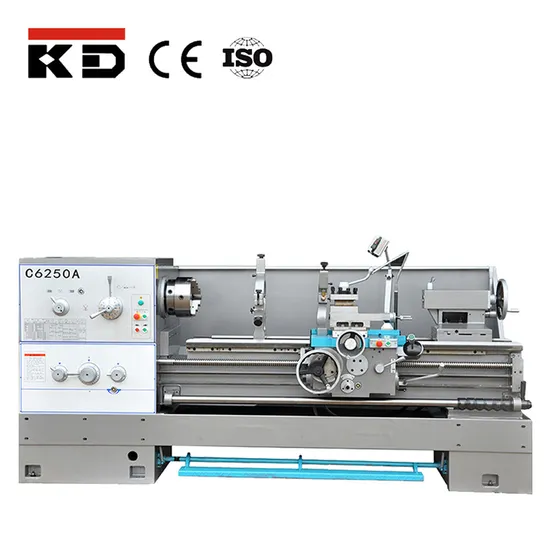

Cutting Metal Manual Lathe with Model No.: C6250A and 500mm Swing Over Bed
| US$4,438.00-4,850.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C6250A
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
500mm
Spindle Bore
80mm
Spindle Nose
D8
Range of Speed
36-1600rpm
Transport Package
3600X1300X1800mm
Specification
3000x1100x1380mm
Trademark
kaida
Origin
Zhejiang
HS Code
8458190000
Production Capacity
1200sets/Year
Product Description
Horizontal C6250A High Accuracy Turning Cheap Lathe MachineProduct Description
| MODELS | C6250A |
| CAPACITY | |
| Max.swing over bed | Ф500mm |
| Max.swing over carriage | Ф310mm |
| Max. swing over gap | Ф720mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max turning length | 850/1350/1850/2850mm |
| SPINDLE | |
| Spindle nose | D8 |
| Spindle bore | Ф80mm |
| Taper bore of spindle | M.T.NO.7 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36~1600rpm |
| FEED | |
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm |
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm |
| RAPID TRAVEL | |
| Longitudinal | 4500mm/min |
| Cross | 1900mm/min |
| THREAD RANGE/ NUMBER | |
| Metric pitch threads | 1~14mm/ 22 |
| Whit-worth threads | 28~2 T.P.I/ 26 |
| Module threads | 0.5~7M.P/ 18 |
| D.P.Threads | 56~4 D.P/24 |
| TAILSTOCK SLEEVE | |
| Taper bore | M.T.NO.5 |
| Max travel | 150mm |
| External diameter | Ф75mm |
| OTHERS | |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 340mm |
| Max travel of top slide | 145mm |
| Main motor power | 7.5kw (10HP) |
| Overall dimensions(L×W×H) | 2500/3000/3500/4500×1280/1070×1380mm |
| Net weight | 2900/3150/3400/3750kg |
