18kv to 66kv 10ka Silicone Housed Composite Metal-Oxide Lightning Arrestor

18kv to 66kv 10ka Silicone Housed Composite Metal-Oxide Lightning Arrestor

US$1.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YH10W5-18
Installation
Parallel Arrester
Application
Substation
Size
Meidum
Operation Voltage
High Voltage
Shape
Cuboid
Material
ZnO
Certification
ISO9001
Brand
Yongde
Housing Material
Silicone/Polymer/Composite Housing
OEM/ODM
Accept
Accessory
Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop
Color
Grey
Purpose
Over-Voltage Protection
Transport Package
by Wood Carton
Specification
Iec60099-4
Trademark
YONGDE
Origin
China, Zhejiang
HS Code
85354000
Production Capacity
5000PCS/Year

Product Description

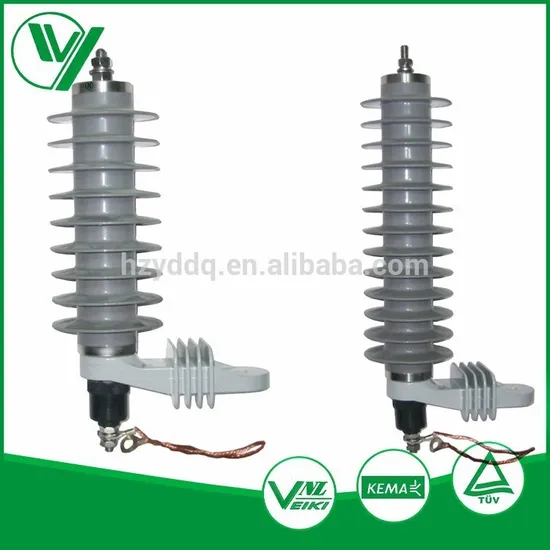

silicone housed composite metal oxide lightning protector 18kv
Main features: 1. The Core column applied winding structure, Polymer Housed core pillar molded on the core column, with almost no internal air gap, and outstanding sealing performance Simple in structure, small in size and light in weight.
2. Polymer Housed with silicone rubber, explosion-proof ZnO varistor as the core component is large
in flow capacity.
3. International standard IEC 60099-4 and ANSI 62.22, and with high reliability. With fully insulated tops, the product can be applied to the complete cabinet installation, which can reduce the designing size of cabinet.
4. Products with detachment device can provide signals for quitting operation when failure occurs,
avoiding arrester explosion, and it is maintenance-free.
5. Polymer housed products with a six CTI level, creepage distance meets the requirements of IV level in heavy pollution areas.
Technical Parameters:
Type YH10W5-18/49.5 4/10µS High current impulse kA 100
Rated voltage---------kV 18 Lightning impulse withstand kV 150
MCOV ----------------kV 15.3 Power frequency voltage withstand(dry/wet)kV 38
Nominal Current-------kA 10 0.1S TOV--------------kV 21.6
Residual voltage of steep impulse----at 5kA(kV) 53.3 1S TOV----------------kV 20.7
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) 49.4 10S TOV---------------kV 19.8
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) 37.8 1200S TOV-------------kV 18
1mA D.C reference voltage (kV) 25.5 Creepage distance ----mm 596
Line discharge level 1 Material employed in series non-linear resistor Zinc Oxide
2mS long duration impulse current A 400 Material of housing silicon rubber
Surge Arrester Drawing:
Environment temperature: -40--+40 degree
altitude:<1000m
48HZ<Rated frequency<62HZ
Power frequency voltage should not be more than continuous running voltage
Max wind speed should be less than 35m/s
Earthquake intensity should be less than 7 degree
If used in contamination area, should be noted in advance.
Shipping Information:
Product Name:18kV,10kA ,Lightning arrester(L,A) Item No:YH10W5-18/49.5
Size:425mmX145mmX220mm with 3pieces per carton Packing:carton with polyfoam insert parts
MOQ:1sets production capacity: 500 sets per day
Payment Terms:T/T 30% before shipment,balance 70% L/C after received B/L Weight:6.5kg/carton
Trade Terms:FOB,CIF(or we can discuss details) Loading Port:Ningbo/ Shanghai(Or as customer requirement)
Loading Ability: 20'GP 4550sets
40'GP 9100sets

Line discharge level from 1 to 5,
Working condition:
Environment temperature: -40--+40 degree
altitude:<1000m
48HZ<Rated frequency<62HZ
Power frequency voltage should not be more than continuous running voltage
Max wind speed should be less than 35m/s
Earthquake intensity should be less than 7 degree
If used in contamination area, should be noted in advance.
