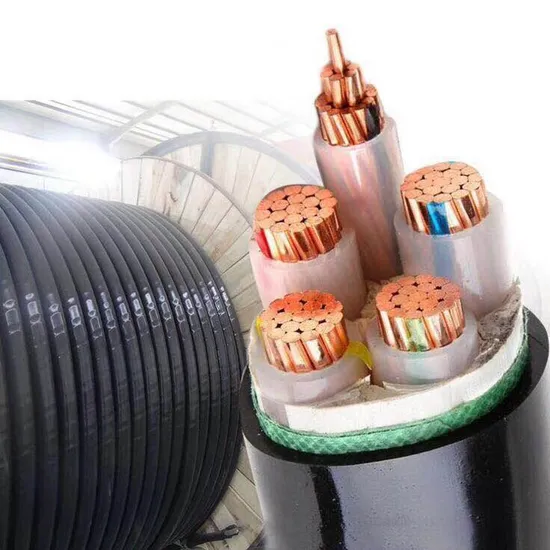

1c 95mm2 240mm2 4c 25mm2 3c 50sqmm Unarmored Cable with Good Price

Product Description

Product Description
This product is suitable for AC 50Hz, rated voltage 0.6/1kV(system maximum voltage 1.2kV) power line transmission power.

SIZE	INSULATION THICKNESS	SHEATH THICKNESS	OUTER DIAMETER	WEIGHT
1*50	1.0	1.4	13.8	544
3*95	1.1	2.0	29.3	2902.1

Occasion
Fixed laying in metallurgy, electric power, construction and other industries, indoor, cable trench, pipeline, direct buried and other occasions without mechanical external force.
Product Characteristics
The source of raw materials for production is wide and the price is low, easy to process and manufacture.
The product uses crosslinked polyethylene insulation, compared with PVC insulated cable, good insulation performance, conductor operating temperature is higher, up to 90 degrees.Rated Voltage
The rated power frequency AC voltage is 0.6/1kV, and the maximum voltage of the AC system should not exceed 1.2kV.
Operating Temperature
The maximum allowable working temperature of the cable conductor for a long time is 90ºC. In the case of short circuit, the maximum temperature of the cable conductor shall not exceed 250 ° C and the duration shall not exceed 5s.
Ambient Temperature
Minimum operating ambient temperature -15 ° C.
Laying Temperature
The laying temperature of the cable should not be lower than 0ºC.
Bending Radius
The bending radius of a single-core cable should not be less than 20 times the outer diameter of the cable, and the bending radius of a multi-core cable should not be less than 15 times the outer diameter of the cable. Company Profile
