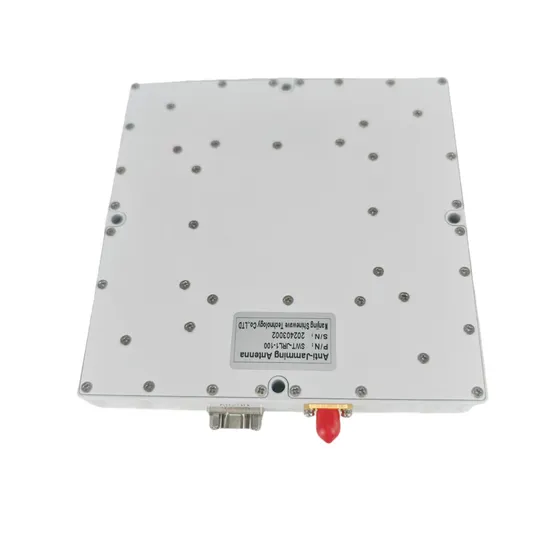

GPS-L1, Galileo E1 and Glonass G1 Anti-Interference Receiver 4 Elements Anti-Jamming Antenna for Navigation Systems

Product Description

GPS-L1, GALILEO E1 and GLONASS G1 Anti-Interference receiver 4 elements Anti-Jamming Antenna for Navigation Systems Product Description
1.Function
1) It can receive satellite signals like BD-B1, GPS-L1, GALILEO E1 and GLONASS G1, output navigation positioning information, and with anti-interference function for BD-B1, GPS-L1, and GALILEO E1 frequency navigation signal.
2) NMEA0183 navigation data is output through standard RS-232C serial port.
2.Main Technique Data

Receiving signal	BD-B1,GPS L1,GALILEO E1,GLONASS G1	Power supply	DC9V~DC36V
Channels	4channel B1L1E1, 1 channel GLONASS	Power consumption	≤12
B1L1 Anti-interference ISR	Three broadband: 80dB~85dB Single broadband:90dB~95dB	Weight	500±5
Location precision(1σ)	Level≤10m, Height≤10m	Speed precision(1σ)	≤0.2m/s ≤0.2 m/s
Physical interface	One J30J-9,One SMA-K(backup)	Dimension	134mm x 134mm x19mm (The size of length and width without connectors )
Communication interface	1 serial port, TTL-3.3V	Data output	NMEA-0183,GGA,GLL,GSA,GSV,RMC,VTG,TXT
Baud rate	4800bps-921600bps,Default 9600bps	Data format	1 start bit, 8 data bits, 1 stop bit, no parity bit.
Working temperature( ºC)	-40~85	Storage Temperature( ºC)	-55~85

3.Physical interface
1) RF signal out: SMA-K socket,be used for outer receiver(backup).
2) Power supply/Communication: J30J-9, pins are defined in the following table.
J30J-9, pins are defined in the following table.

Number	Definition	Remark
1,4	Power positive pole	DC9V ~ DC36V
5,6	Power negative pole
2	Serial port RXD	RS-232C voltage
3	Serial port TXD	RS-232C voltage
7	Signal GND
8,9	Empty
