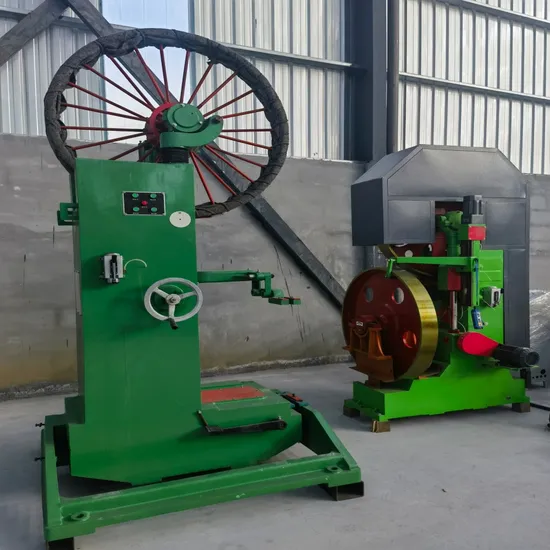

40 42 48 60 Inch Woodworking Vertical Bandsaw Log Cutting Machine
| US$2,290.00-14,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WS60
Power Type
Electric
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
12 Month
Name
Vertical Band Saw Cutting
Saw Wheel Diameter
800mm
Saw Wheel Width
110mm
Saw Blade
5700mm
Motor Power
15kw
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8465910000
Production Capacity
200 Sets Per Year
Product Description
Product ParametersManual Feeding Band Saw
| Model | WS32 | WS36 |
| Saw Wheel Diameter MM | 800 | 900 |
| Saw Wheel Width MM | 110 | 120 |
| Blade Length MM | 5700 | 6400 |
| Main Motor Power KW | 15 | 18.5 |
| Saw Wheel & Clip Up/Down | Manual | Manual |
| Main Motor,Iron Made Safe Protective casing,Manual Lubrication | ||
Auto Feeding Vertical Band Saw
| Saw Wheel Diameter *Width | 800*110MM |
| Max Sawing Width*Height | 200*400MM |
| Casted Working Table Size | 1000*1000MM |
| Main Motor Power KW | 15KW |
| Feeding Motor | 2.2KW |
| Saw Wheel & Clip Up/Down | 0.75KW |
| Feeding speed | 10-40 Meters/Minute |
| Weight KG | 2000KG |
| Main Motor,Iron Made Safe Protective casing,Manual Lubrication | |
Band Saw With Turning Table
| Saw Wheel Diameter | 650mm |
| Saw Blade Width | 75mm |
| Motor Power | 7.5kw |
| Weight | 750kg |
Single Vertical Saw
| Max Sawing Width | 400MM |
| Max Sawing Height | 300MM |
| Saw Wheel Diameter | 700MM |
| Feeding Chain Conveyor | 15 Meters *150MM |
| Motor Power | 15KW |
| Feeding Speed | 5-20 Meters/Min |
| Feeding Conveyor Motor | 2.2KW |
| In + Out Feeding Chain Conveyor | 2000MM+2000MM |
| Weight | 1200KG |
Twin Vertical Band Saw
| Model | WS350 | WS500 | WS400 |
| Sawing Wood Width MM | 100-350 | 300-500 | 100-400 |
| Sawing Wood Length | 1000-3000 | 1000-3000 | 1000-3000 |
| Saw Wheel Diameter | 700MM | 760MM | 700MM |
| Feeding Speed | 9-25 M/Min | 9-25 M/Min | 9-25 M/Min |
| Conveyor Length | 3500MM*2 | 3500MM*2 | 7000MM |
| Saw Motor | 2*18.5KW | 2*22KW | 2*18.5KW |
| Feeding Motor | 5.5KW | 4KW*2 | 5.5KW |
| Saw Blade Width*Thickness | 80*0.9MM | 100*1.05MM | 80*0.9MM |
| Touch Screen Setting Sawing Size And Digital Display Variable Frequency Speed Adjustable Feeding Speed | |||
Related Machines
WS36 Vertical Band Sawmill With
Manual/Electric/CNC/Pneumatic/Hydraulic Log Carriage
| Wheel Diameter (MM) | 900 | |||
| Max Sawing Diameter | 700 | |||
| Saw Blade (MM) | 6400*125*1.05 | |||
| Main Motor Power( KW) | 18.5 | |||
| Log Carriage | Manual | Electric | Manual | Electric |
| Carriage Length MM | 3000 | 5000 | ||
| Max Sawing Length MM | 4000 | 6000 | ||
| Clamping | Manual *3 | Manual*4 | ||
| Walking | Manual | Electric | Manual | Electric |
| Sizing | Manual | Electric | Manual | Electric |
| Options | Specification |
| CNC Log Carriage | Touch Screen Sizing,Electric Clamping,VFD Walking |
| Pneumatic Log Carriage | Pneumatic Clamping,Pneumatic rotation,touch screen sizing,VFD walking |
| Hydraulic Log Carriage | hydraulic Clamping,Hydraulic rotation,touch screen sizing,vfd walking |
| Log Loading Deck | 5000*2000MM,5000*4000MM |
| Roller Conveyor | 5000*800MM,8000*800MM |
| Chain Conveyor | 1800*200MM,4000*2000MM |
WS40 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage
| Saw Wheel Diameter | 1000(MM) | ||||
| Max Sawing Diameter | 800(MM) | ||||
| Saw Blade | 6850*125*1.05(MM) | ||||
| Saw Clip & Wheel Up & Down | Electric | ||||
| Main Motor Power( KW) | 22 | ||||
| Log Carriage | Electric | CNC | Electric | CNC | |
| Carriage Length | 3000MM | 5000MM | |||
| Max Sawing Wood Length | 4000 MM | 6000MM | |||
| Clamping | Manual*3 | Electric*3 | Manual*4 | Electric*4 | |
| Walking | Electric | VFD | Electric | VFD | |
| Sizing | Electric | Touch Screen | Electric | Touch Screen | |
WS42 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage
| Saw Wheel Diameter | 1070 | ||||
| Max Sawing Diameter | 1000 | ||||
| Saw Blade | 7400*150*1.05 | ||||
| Saw Clip & Wheel Up & Down | Electric | ||||
| Main Motor Power( KW) | 30 | ||||
| Log Carriage | Electric | CNC | Electric | CNC | |
| Carriage Length | 3000MM | 5000MM | |||
| Max Sawing Wood Length | 4000 MM | 6000MM | |||
| Clamping | Manual*3 | Electric*3 | Manual*4 | Electric*4 | |
| Walking | Electric | VFD | Electric | VFD | |
| Sizing | Electric | Touch Screen | Electric | Touch Screen | |
WS48 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage
| Saw Wheel Diameter | 1250MM | |
| Max Sawing Diameter | 1200MM | |
| Saw Blade | 8600*150 | |
| Saw Clip & Wheel Up & Down | Electric | |
| Main Motor Power( KW) | 37KW | |
| CNC Log Carriage | 3000MM | 5000MM |
| Max Sawing Wood Length | 4000MM | 6000MM |
| Clamping | Electric*3 | Electric*4 |
| Walking | Frequency | Frequency |
| Sizing | Touch Screen | Touch Screen |
WS60 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage
| Saw Wheel Diameter | 1250MM | |
| Max Sawing Diameter | 1500MM | |
| Saw Blade | 9200*150 | |
| Saw Clip & Wheel Up & Down | Electric | |
| Main Motor Power( KW) | 45KW | |
| CNC Log Carriage | 3000MM | 5000MM |
| Max Sawing Wood Length | 4000MM | 6000MM |
| Clamping | Electric*3 | Electric*4 |
| Walking | Frequency | Frequency |
| Sizing | Touch Screen | Touch Screen |
Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our Band Sawmill machines including:
Hydraulic Heavy Duty Horizontal Sawmill
Hydraulic Portable Horizontal Sawmill
Multiple Heads Horizontal Resaw Band Saws
Heavy Duty Horizontal Sawmill
Portable Horizontal Sawmill
Thin Cutting Horizontal Resaw
Mini Portable Sawmill
Twin Vertical Band Sawmill
Vertical Band Sawmill
Log Carriage (Manual,Electric,Pneumatic,Hydraulic)
Band Saw Blade
Band Saw Blade (Sharpener,Butt Welder,Roller)
Brazing Machine (Manual/Automatic Stellite/Tungsten)
Blade Grinding Machine(Manual/Automatic ,Side/Angle)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
