for Sale Tree Branch Crusher Wood Powder Grinder

for Sale Tree Branch Crusher Wood Powder Grinder

US$1,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Twin Screw Bulking Machine
Output
0.5 - 30 T/H
Material
Stainless Steel
Motor
Siemens Motor
Knife
144
Transport Package
Export Wooden Case
Origin
China
HS Code
84743900
Production Capacity
30000PCS/Year

Product Description

Product Description

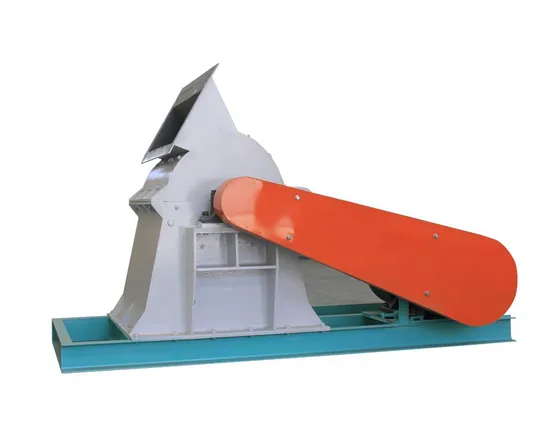

This hammer mill is applicable for the material after chipping (length≤ 30 mm,width≤30 mm, thickness ≤20 mm ), and it should be fiber material with big moisture and oiliness and also applicable for coarse grinding.
Rotor is with dynamic balance test with high accuracy(G 6.3 grade), vibration is small and lifetime is long.
Knife , screen and pin shaft been specially heat treated are with long lifetime and high grinding efficiency.
Operation door is equipped with self-lock device wihch is convenient , flexible ,safe and stable.
We have so many kinds of biomass hammer mills , which there must be one hammer mill match your requirement.
Features:High Productivity
Low Cost
Global Network
Relibale Equipment
Long Service Life

Detailed Photos

Product Parameters

Model
 SFSP60x70
 SFSP60X100
 SFSP60X120
Rotor Dia(mm)
 600
 600
 600
Main Shaft Speed(rpm)
 3370
 3370
 3370
Knife Linear Speed(m/s)
 106
 106
 106
Width of Chamber(mm)
 700
 980
 1170
QTY of Knife
 42
 60
 72
Power(kw)
 55/75
 90/110
 132/160
Capacity(t/h)
 1.0-2.0
 2.5-3.5
 3.5-5.0
