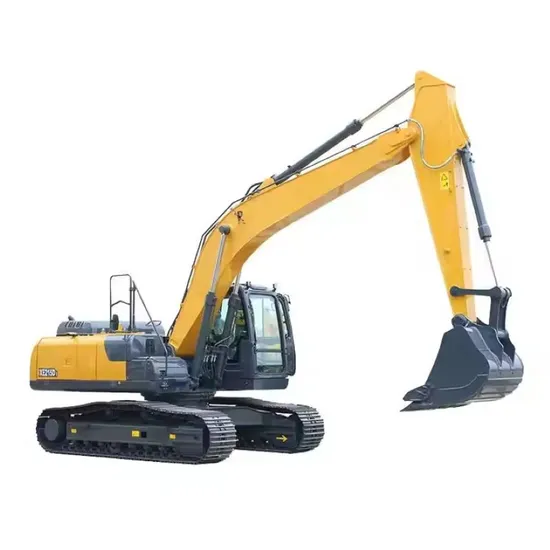

High Quality Xe215c with 1cbm Bucket Capacity Crawler Excavator for Sale

Product Description

Product descriptions from the supplier Product Description

Product Description

1. The extended and widened wheel tread and track gauge, the enhanced working device,and the reasonably arranged parts guarantee the user's safety, stability, and reliability of the machine.

2. The structural parts are optimized and the key bearing parts are reinforced to resist the harsh working conditions.

3. Various specifications of the lifting arm, bucket arm, bucket can be easily combined to adapt to a variety of working conditions.
4. The streamline appearance design and the coordinated matching between colors and markings forge the China's first-class appearance of machine.
5. The world's leading highly adaptable turbocharged engine.


Product Parameters

Specification

Engine	Model	CC-6BG1TRP
	Equipped	Electronic fuel injection
		Four strokes
		Water cooling
		Turbo-charging
		Air to air intercooler
	No. of cylinders	6
	Output power	128.5/2100 kW/rpm
	Torque/speed	637/1800 N.m/rpm
	Displacement	6.494 L
Operation Weight		21700 kg
Bucket Capacity		0.9-1.0 m ³
Main performance	Travel speed(H/L)	5.5/3.3 km/h
	Rotating speed	13.3 r/min
	Gradeability	≤35°
	Ground pressure	47.2 kPa
	Bucket digging force	149 kN
	Arm digging force	111 kN
	Maximum traction	184 kN
Working scope	Max. digging height	9620 mm
	Max. dumping height	6780 mm
	Max. digging depth	6680 mm
	Excavation depth of 8 feet level	6500 mm
	Max. vertical wall digging depth	5715 mm
	Max. digging reach	9940 mm
	Min. swing radius	3530 mm
