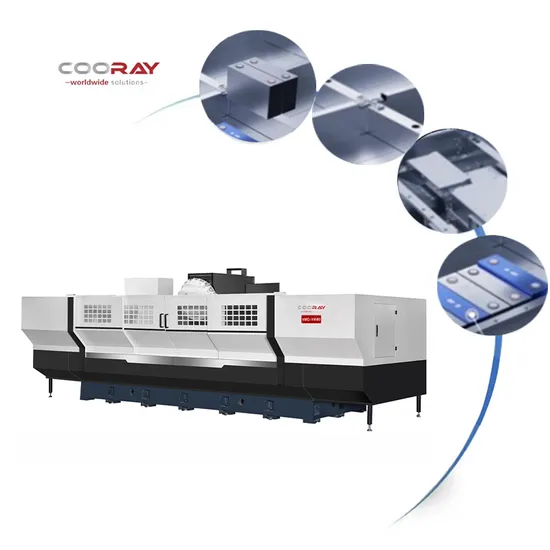

Cooray Cr-Vmc CNC Profile Machining Center Vertical Machining Center
| US$50,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CNC PROFILE MACHINING CENTER
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Core Components
Bearing, Motor
Brand Name
Cooray
Product Name
Vmc-V6500
CNC or Not
CNC
Transport Package
The Two Sides Negotiate Logistics.
Specification
9600*2900*2650
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
960.00cm * 290.00cm * 265.00cm
Package Gross Weight
13500.000kg
Product Description
Product Description| Machine data/model | Unit | VMC-V1600 | VMC-V2000 | VMC-V2500 | VMC-V3500 | VMC-V4500 | VMC-V6500 | |
Travel | X-axis travel | mm | 1600 | 2000 | 2500 | 3500 | 4000 | 6500 |
| Y-axis travel | mm | 600 | 680 | 580 | 580 | 580 | 580 | |
| Z-axis travel | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
| Distance fromspindle nose totablesurface | mm | 120-720 | 120-720 | 120-720 | 120-720 | 120-720 | 120-720 | |
Distance from spindle center to columnguide surface | mm | 660 | 700 | 660 | 660 | 660 | 660 | |
Workbench | Workbench size | mm | 1700×600 | 2100×600 | 3100×500 | 4000×500 | 5000×550 | 7000×550 |
| Workbench load-bearing | kg | 650 | 650 | 650 | 650 | 650 | 800 | |
| T-slot(numberof slots-size xspacing) | mm | 5-18×114 | 5-18×114 | 4-18×106 | 4-18×106 | 5-18×100 | 5-18×100 | |
Spindle | Spindletaper specifications | - | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 |
| Spindlespeed(Optional) | rpm | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | |
| Spindlemotor power | kw | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | |
Three-axis parameters | Three-axis motor power(XY/Z) | kw | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 |
| XY/Zaxis rapidmoving speed | m/min | 36/36/36 | 36/36/36 | 32/32/32 | 24/32/32 | 24/32/32 | 24/32/32 | |
| Cutting feedspeed | mm/min | 0-15000 | 0-15000 | 0-15000 | 0-15000 | 0-15000 | 0-15000 | |
Position | Positionaccuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatedpositionaccuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | |
Magazine | Magazine capacity | Put | 24 | 24 | 24 | 24 | 24 | 24 |
| The maximum weightof cutter | kg | 7 | 7 | 7 | 7 | 7 | 7 | |
| Themaximum length of cutter | mm | 300 | 300 | 300 | 300 | 300 | 300 | |
| Cutter diameter(fullinterspace) | mm | 80/150 | 80/150 | 80/150 | 80/150 | 80/150 | 80/150 | |
| Magazineform | - | Disctype | Disctype | Disc type | Disctype | Disc type | Disc type | |
Other | Air pressure demand | Kg/cm² | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Machine weight | Kg | 8000 | 8500 | 9500 | 11000 | 12000 | 13500 | |
| Machine size (length×width×height) | m | 4.6×2.7×2.76 | 5.2×2.7×2.76 | 5.6×2.7×2.65 | 6.7×2.9×2.65 | 6.7×2.9×2.65 | 9.6×2.9×2.65 | |
