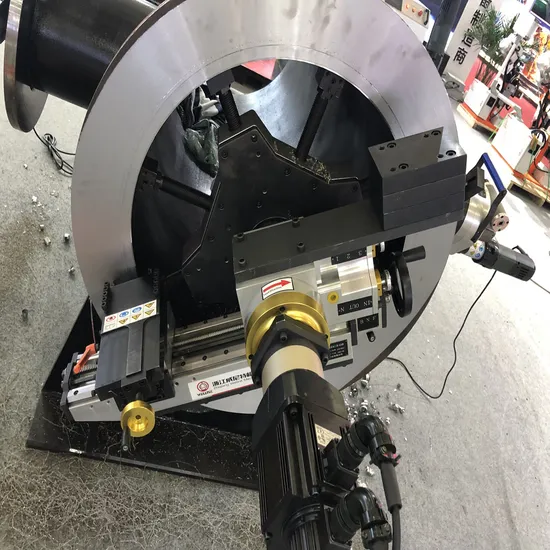

Pneumatic Internal Orbital Flange Facing Machine

Product Description

Heat Exchanger Flange Facing Machine Portable Seal Groove Flange Facer
Modular structure, easy to install, stable machining.
Production Description

Flange, or flange plate, which means the symmetrical plate structure used to connect pipes,
vessels or fixed shaft mechanical parts, usually with bolt and thread structure for fixation.
The Portable Flange Facer Machine is a kind of machining machine, which can repair the flange surface,
prolong the service life of the machine and reduce the industrial cost.

Model	610	1000	1650	2000	3000
Facing Range (O.D)mm	50-610	153-1000	500-1650	762-2000	1150-3000
Mounting Range (I.D)mm	50-508	145-813	500-1500	604-1830	1120-2800
Tool Feed Stroke mm	50	102	102	102	102
Tool holder Swivel Angle	+-30°	+-30°	+-30°	+-360°	+-360°
Rotation Speed r/min	0-42	0-33	0-22	0-20	3-12

• Exceedingly versatile
• Highly portable
• Latest linear technology
• High efficiency
• Low noise level 2.0hp drive
• Storage/shipping box
• CE certificate
