4000lbs Level Super Electric Winches with Wire Rope
| US$60.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
X4000
Pull Direction
Forward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Brand
Zhme
Applicable Environment
ATV
Certification
GS, CE
Product Name
Electric ATV Winch
Motor
Winch Motor 1.6HP/1.2kw, 12V DC
Rated Line Pull
4000lbs
Gear Train
3 Stage Planetary Gear 198:1
Rope
Winch Wire Rope 6.0mm X 10m
Certificate
CE, SGS
Waterproof
IP68
Dimensions
348mm X 114mm X 120mm
N.W.
11kg
MOQ
50 Winches
Transport Package
Color Box
Specification
CE, SGS, ISO9001: 2008
Trademark
ZHME
Origin
Zhejiang, Ningbo
HS Code
84253190
Production Capacity
China
Product Description
4000lbs level super electric winches with wire ropeAdvantage:
1. Motor: High performance motor provides fast line speed.
2. Contactor: High efficiency 200 Amp Rated contactor.
3. Gear Box: Waterproof IP68, low noise, steady work.
4. Brake: Independent and automatic, safety and reliability.
5. Waterproof: IP68.
Specifications:
| Specifications | |
| Item | X4000 |
| Rated Line Pull | 4000lbs(1818kgs) single line |
| Motor | Permanent magnetic motor 1.6hp/1.2kw, 12V DC |
| Gear Train | 3 stage planetary gear |
| Gear Ratio | 198:1 |
| Braking Action | Automatic in the drum |
| Fairlead | 4-Way Roller Fairlead |
| Rope | Wire Rope 6.0mm x 10m |
| Drum size | 50mm x 76.5mm |
| Dimensions | 348mm x 114mm x 120mm |

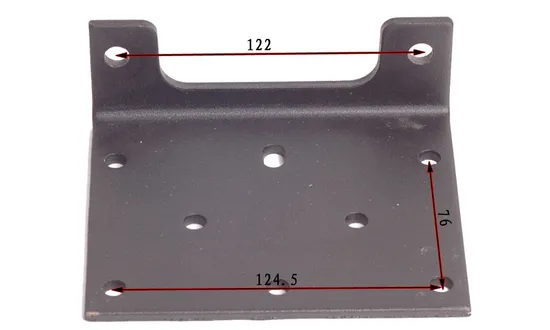

| Mounting Bolt Pattern | 124mm×76mm |
| N.W. | 11kg |
