Cheap Haige Centerless Bar Turning Machine for Round Copper Bars

Product Description

Automatic lathe peeling machine

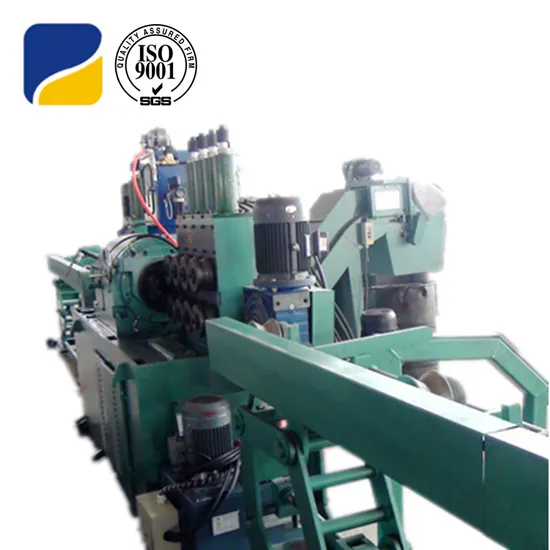

Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters
1. Original state requirements of processing parts
1.2 Bearing capacity: ≤5000Kg
1.3 Dimensions and Specifications:
Diameter range: φ60-φ165
Diameter deviation: GB70286-2 group standard
Straightness: 2‰
Length range: 2.5m to 6M
Tensile strength: ≤1200N/mm2
2. The finished product
2.1 Diameter range: φ55-φ160
2.2 Dimensional accuracy: ≤ H11
2.3 Surface roughness Ra; 6.3 microns or less
2.4 Straightness; 2 ‰ or less
2.5 roundness; H11/2 or less
3. Main technical parameters
3.1. Cutting depth: 0.25-2.5mm
3.2. Speed of cutter head: 110-440R /min (two-speed variable speed stepless frequency conversion)
3.3. Feed speed: 0.4-4m/min (stepless frequency conversion)
3.4, the main motor power: 75kW6 pole / 90KW
3.5. Feed and draw motor power: 4KW 2 sets / 5.5x2
4. Energy medium parameters
4.1. Voltage: 3X380V±10%
4.2 Frequency: 50HZ±2%
4.3. Installed capacity: 90KW / 110KW
4.4. Pneumatic flow: 1m3/min
4.5 Coolant flow rate: 400L/min
Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
