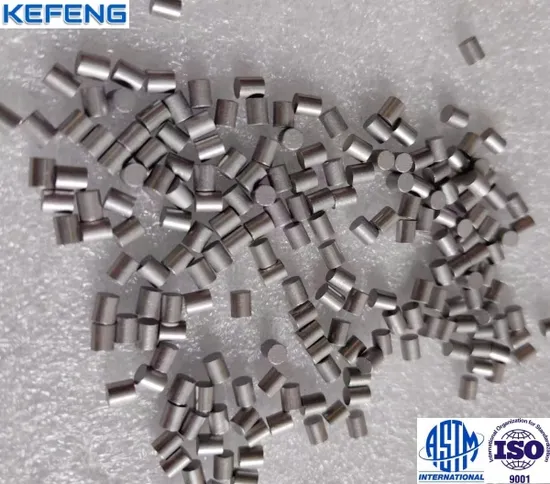

Tungsten Alloy Rods with AMS7725 and ASTM B 777 Standard
| US$100.00-500.00 | 10 kg (MOQ) |
Basic Info.
Model NO.
Tungsten alloy block, rod, bar, sheet, cube, ball
Purity
Tungsten 90~97%
Alloy
Alloy
Type
Tungsten Alloy
Powder
Sintering
Density
16.85~17.25g/cm3 Class 1
Class 2
17.15~17.85g/Cc
Class 3
17.75~18.35g/Cc
Class 4
18.25~18.85g/Cc
Hardness
32HRC 33HRC 34HRC 35HRC
Tungsten Nominal %
90, 92.5, 95, 97
Ultimate Tensile Strength
758MPa, 724MPa, 689MPa
Yield Strength at 0.2% off-Set
517MPa
Elongation
5%, 3%, 2%
Other Quality
AMS-T-21014, Mil-T-21014
Tungsten
Rod
Shape
Tungsten Alloy Plate
Tungsten Alloy
Balance for Aircraft Counterweight Fillers
Shielding
Tungsten Shielding for X-ray
Transport Package
Export Wooden Cases Inside with Foam
Specification
Standard sizes or customized
Trademark
Kefeng
Origin
China
HS Code
81019910
Production Capacity
1000kgs Per Month
Product Description
Xi'an Kefeng Powder Metallurgy Co Ltd., a manufacturer, leading products are Tungsten Based high density alloy machining products,90-97%W Ni Fe, W Ni Cu alloy, W-Ni-Fe-Mo alloy and 70-85% Tungsten-30-15%Copper alloy.
Shape as rod, bar, ring, cube, ball, plate, disc, block, and some drawings as per customer's requirements!
Entire Processes: all processes are proceed in Kefeng plant, from mix powders, pressing, sintering, machining, inspcetions, packing, shiping.
all processes are controlled according to ISO9001-2015 requirement, and our products are meet RoSH requirement.
Products inculding: W alloy balance--crankshaft weight for the cars, motorcycles, mobile phones, fittings for shipbuilding and roacked weights, aerospace gyroscope rotors, civil aircraft counterweight fillers, aircraft brake pads, helicopter landing gear components tungsten shielding against X-Ray for the medical equipment and nuclear industary.
For tungsten alloy rods with AMS7725, it can be mainly used in: Resistance welding electrode Electric upsetting anvil Radio shielding material, the collimator in the flaw detector and the clinical radio-shielding needle. Partial balance weight Other fields in military equipment and fishery equipment to replace uranium and lead without pollution.
