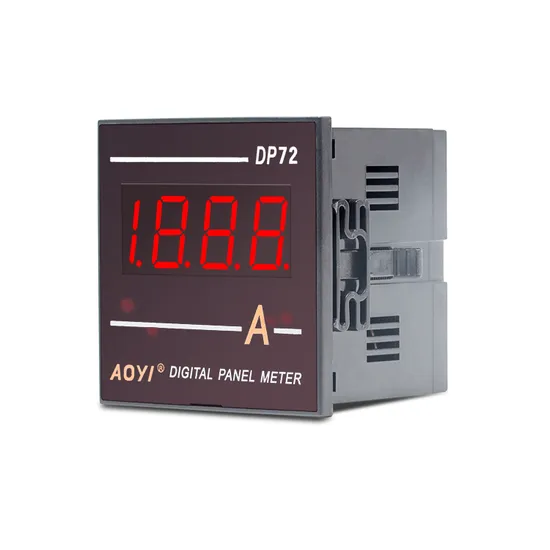

Aoyi Hn-Dp72 Intelligent Digital Display Rpm Panel Meter

Product Description

DP series digital display table is a kind of economic digital instrument,mainly used in electric circuit of ac and dc voltage,current value for real-time measurement and instructions,also can use in combination with power with linear analog signal output and power transmitter,indicates that one circuit of the power or power value,with high measurement precision,good stability and indirect reading,strong anti-interference ability and other characteristics,can be widely used in various voltage grades of urban and rural substation,power plants,enterprises/institutions variable transformer room,intelligent building,metallurgy,petrochemical,airports,railways,ports,hospitals,schools,municipal,and many other fields.It is an ideal replacement for the original pointer instrument.
HN-DP---
HN: serial number DP: installation type digital ammeter series product code.
instrument appearance selection: as described in the following table.
instrument type: AV: ac voltage DV: dc voltage AA: ac current DA: dc current
LB: analog table(input can be DC0-10,0-20ma,display: within ±1999
other C(Pt,K,E,etc)represent the input index of the thermocouple.
variable ratio of range: AC500V,AC100.0A/5A,600rpm/DC0-10V,etc.
other contents of the meter should be noted.
3.1 measuring range
3.1.1 voltmeter: direct measurement: DC,AC0~600V
external attachment: AC0~1999kV(external attachment*100Vmutual transformer)
3.1.2 ammeter: direct measurement: DC,AC0~5A
external attachment: DC,AC0~1999kA(dc external with*/75mV diverter,ac external with*/5A transformer)
3.1.3 analog meter: direct input of analog quantity: DC0~10V,0~20mA,etc.
maximum display: ±1999(A,V,rpm,HZ,M/min,Mpa etc.)
3.1.4 thermometer: corresponds to the full range of each scale mark.
3.2 accuracy: ±0.5%FS ±2 words(thermometer ±1%FS ±2 words)
3.3 sampling rate: about 3 times/s
3.4 display mode: three-digit semi-LED digital tube display
3.5 resolution: one word at the end
3.6 auxiliary power supply: AC220V±10%(other power supplies can be customized)
3.7 auxiliary power consumption: <3VA
3.8 overflow indication: the highest digit displays 1 or -1,and the remaining digit is hidden)
3.9 dc gauge polarity indicator: negative signal automatically displays "-",positive signal does not show
3.10 working conditions: temperature-10~50;humidity-<=85%RH without corrosive gas.
Wiring Diagram wiring and terminal instructions(INPUT is the input terminal of measuring signal,POWER is working power terminal,and if it is inconsistent with the enclosure wiring diagraam,please refer to the enclosure wiring diagram.)
Warning 1. installation method: according to the appearance of instrument,select the corresponding installation hole size in the above table,open a hole on the installation screen,insert the instrument into the hole,put two clamping parts into the clamping groove of the instrument shell,and then push them by hand(if there are tightening screws,tighten them.)
2.Please confirm whether the auxiliary power,input signal and connection are correct before energizing.
3.The instrument should be preheated for 15 minutes before accurate measurement.
4.The instrument shall not be knocked,collided and vibrated violently,and the operating environment shall meet the technical requirements.
5.The instruments and accessories shall be stored in a dry and ventilated place under packing conditions to avoid exposure to moisture and corrosive gasses.The storage temperature shall not exceed +70,no less than -40,and the humidity shall be<=85%.
Function 5.1 This series of instruments has the function of the external zero compensation.When the meter is opened(or pried open),only the front cover of the meter will see potentiometer marked with zero-adjustment or ZERO.This potentiometer can adjust the room temperature.The current and voltage meter shall be customized for this function.
5.2 When adjusting the potentiometer with measuring range or RANGE,change the measurement display value of the meter(it is not recommended to adjust the potentiometer if there is no standard instrument.)
5.3 measuring range selection: Different instrument range can be obtained according to the position of the plug cap on the display board.The relationship between the inserted position of the two interpolation amplitudes and the second point and the measuring range is shown in the following table(DP48 does not support this function).
