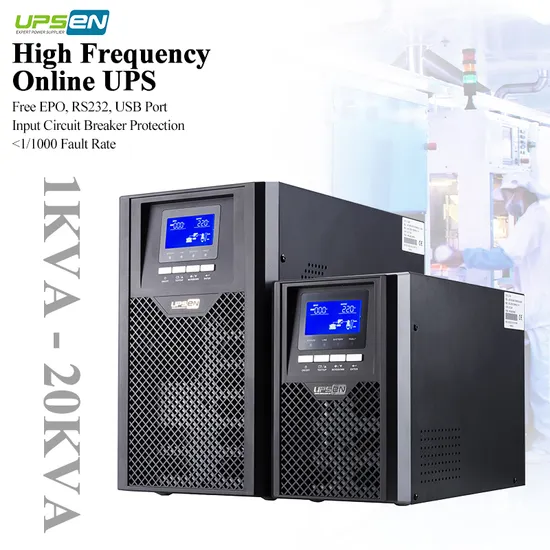

Uninterruptible Power Supply High Frequency UPS Double Conversion Online UPS Power 1kVA - 20kVA with PF0.9 PF1 Output IEC / Schuko / Universal / NEMA Outlets

Product Description

High Frequency Online UPS Sun Star Series S1K-10KVA(1ph in/1ph out)
Product Description Key Feature:
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
TECHNICAL SPECIFCATION

Tower Model

S1K

S1KL

S2K

S2KL

S3K

S3KL

S6K

S6KL

S10K

S10KL

31S10KL

31S15KL

31S20Kl

Rack Model

RS1K

RS1KL

RS2K

RS2KL

RS3K

RS3KL

RS6K

RS6KL

RS10K

RS10KL

31RS10KL

31RS15KL

31RS20KL

Phase

Single phase (L/N+PE)

3 Phases Input Single Phase Output

Capacity

1KVA / 900W

2KVA / 1.8KW

3KVA / 2.7KW

6KVA / 5.4KW

10KVA / 9KW

10KVA / 9KW

15KVA/13.5KW

20KVA / 18KW

Input

Nominal Input Voltage

110/115/120/127Vac or 208/220/230/240Vac

380/400/415Vac

Input Voltage Range

55~145VAC or 90~300VAC±5VAC

156~520VAC

Frequency

50 / 60 Hz

Input Frequency Range

40~70Hz

Input Power Factor

>0.99

Output

Output wiring system

Single phase (L/N+PE)

Output Voltage

110/115/120/127Vac or 208/220/230/240Vac

208/220/230/240Vac

Output Voltage Regulation

±1%

Output Frequency

50/60±4Hz (Sync mode); 50/60Hz±1% (Fix Freq. mode)

Overload Capability

1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load

Output THDV%

THD<2% (linear load) ; THD<7% (nonlinear load)

Output Waveform

Pure Sine Wave

Transfer Time

Line mode ↔ Bat Mode

0ms

Inv ↔ Bypass Mode

<4ms

Efficiency

Line Mode

88%

89%

90%

92%

93%

94%

94%

94%

Battery Mode

86%

87%

88%

92%

93%

92%

92%

92%

Battery & Charger

Nominal Voltage

24V

24V/36V

48V

48V/72V

72V

72V/96V

192V

144V/192V

192V / 240V

192V / 240V

Battery Voltage / Capacity

2*12V/7AH

External Battery

4*12V/7AH

External Battery

6*12V/7AH

External Battery

12*12V/7AH

External Battery

16/20*12V/7AH

192V/240V External Battery

192V/240V External Battery

Battery Type

Valve Regulated Maintenance Free Lead Acid (VRLA) or Lifepo4 Battery

Backup Time

Half loaded≥8minutes, Full loaded ≥3minutes(standard)

Half loaded≥6minutes, Full loaded ≥3minutes(standard)

Depends on external battery capacity

Recharge Time

~5 Hours

Subject to External Battery Config

~5 Hours

Subject to External Battery Config

~5 Hours

Subject to External Battery Config

~5 Hours

Subject to External Battery Config

~5 Hours

Subject to External Battery Config

Subject to External Battery Config

Recharge Current

1A

4A

1A

4A

1A

4A

1A

4A

1A

4A

Long Backup Time Model: 4A / 8A (Optional)

HMI

Display

LCD

Buzzer Alarm

Bat.Mode / Bat.Low / OverLoad / Fault

Communication Port

Standard: RS232+EPO/ROO+USB PORT; SNMP Card Slot (Option)

Alarm Function

AC / DC input under abnormal, overload condition and Inverter problems

Protection Function

AC input or output above or below the range of voltage, overload, over temperature and short circuit protection

Environment

Humidity

5~97% (Non Condensing)

Operating Ambient Temperature

0~40ºC

Audible Noise

<50dB@ 1 meters

<55dB@ 1 meters

<60dB @ 1 meters

*External Battery Pack Rated Voltage Can Select Upon Order, 192 / 240V

*Product Specifications are Subject to Change Without Notice.
