Recycle Epoxy Injection Mould/Molding Resin ABS Granules Pellet Plastic Raw Material ABS for Electric Product/Auto/Spare Parts /USB Cable/Safes/Junction Box

Recycle Epoxy Injection Mould/Molding Resin ABS Granules Pellet Plastic Raw Material ABS for Electric Product/Auto/Spare Parts /USB Cable/Safes/Junction Box

US$2.80
500-998 kg
US$2.00
999 kg
US$1.30
1,000+ kg

Basic Info.

Formula
C8h8-C4h6-C3h3n
EINECS
618-371-8
Material
ABS-S100
Usage
General Plastics, Engineering Plastics, Specialty Plastics, Auto Parts
Plastic Properties After Heated
Thermoplastic Plastics
Plastic Forming Method
Injection
Color
Customized
OEM/ODM
Support
Quality
Top Quality
Delivery Time
7-15 Days
Shape
Granules
Certificate
ISO9001:2015, RoHS, Reach, UL
Grade
Injection Grade, Extrusion Grade
Service
Provide One Stop Service
Application
Automotive Parts, Home Appliance Components, Elect
Transport Package
Customized Packing
Specification
Customized
Trademark
Customized logo
Origin
China
HS Code
3908101101
Production Capacity
300kg/Week

Product Description

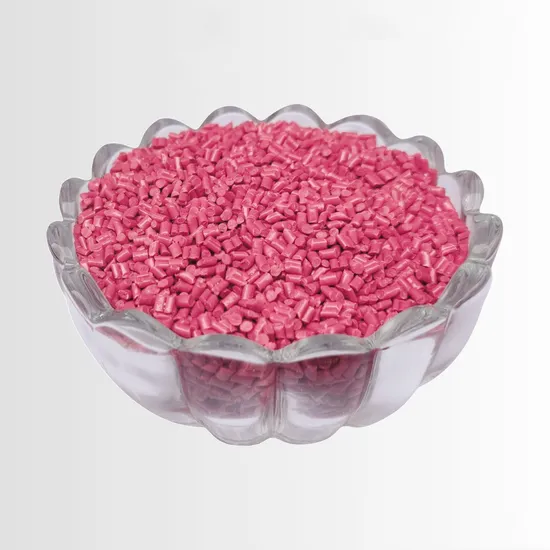

ABS S100
Properties Rated value Test Method
Physical properties
Specific Gravity 1.04 g/cm³ ISO 1183/B
1.05 g/cm³ ISO 1183/B
Apparent density 0.600 g/cm³ ISO 60
Die shrinkage, parallel 0.4 - 0.7 % ASTM D955;ISO294-4
Melt index, mass
230 °C;3.8 kg 2.5 g/10min ASTM D1238
10 kg;220 °C 10 g/10min ISO 1133
Mechanical properties
Tensile strength, fracture 25.0 MPa ASTM D638
Tensile strength, yield (5.1 mm/min) 42.3MPa ASTM D638-1
Tensile strain, fracture (51 mm/min) 25% ASTM D638-1
Tensile strain, yield (Thickness; 3.2mm) 3.30% ISO 527-2/50
Tensile modulus
5 mm/min 2070 MPa ASTM D638-1
Thickness; 3.2 mm 2200 MPa ISO 527-2
Bending strength
5.1 mm/min 64.5 MPa ASTM D790-1
Thickness; 3.2 mm 65.0 MPa ISO 178
Bending modulus
2210 MPa ASTM D790
Thickness; 3.2 mm 2100 MPa ISO 178
Impact strength of cantilever beam, notch
Thickness; 3.2 mm;Temperature; 23 °C 310 J/m ASTM D256
Temperature; -30 °C 10.0 kJ/m2 ISO 108-1A
Temperature; 23 °C 17.0 kJ/m2 ISO 108-1A
Impact strength of simple supported beam, notch
Temperature; -30 °C 8 kJ/m² ISO 179-2
Temperature; 23 °C 12 kJ/m2 ISO 179-2
Temperature; -30 °C 11 kJ/m2 ISO 179 1eA
Temperature; 23 °C 17 kJ/m² ISO 179 1eA
Meter impact test, total energy
Thickness; 3.2 mm;Temperature; 23 °C;3.39 m/sec;Peak Energy 31.1 J ASTM D3763
Thickness; 3.2 mm;Temperature; -29 °C;3.39 m/sec;Peak Energy 31.7 J ASTM D3763
Thickness; 3.2 mm;Temperature; -29 °C;Total Energy 34.3J ASTM D3763
Thickness; 3.2 mm;Temperature; 23 °C;-29 °C;Total Energy 45.4 J ASTM D3763
Thermal properties
Linear coefficient of thermal expansion (CTE), parallel 94.0 µm/m-°C ASTM D696
Heat Deflection Temperature
Thickness; 3.2 mm;Pressure; 0.46 MPa 96.1 °C ASTM D648
Thickness; 3.2 mm;Pressure; 1.8 MPa 82.8 °C ASTM D648
Pressure; 1.8 MPa;Annealed 101 °C ISO 75-2/A
Vicat temperature 102 °C ISO 306/B50
108 °C ASTM D1525
Flame retardant rating
Thickness; 1.5 mm HB UL 94
Thickness; 3 mm HB UL 94
Flame spread 60.0 mm/min ISO 3795
Why choose us
More Related Products
Company Profile
Suzhou Shituo New Material Co., Ltd. The company was established in 1998; Registered capital of 100 million RMB, 30 minutes from Shanghai high-speed rail; 1 hour from Nanjing,is a High-Tech Enterprise specializing in the production and R&D of technique compounds based on PA6, PA66, PP, PBT, PC, ABS, PC/ABS, HIPS, AES, PVC, TPE, disposable formwork (for lightweight fill applications) and reusable formwork (for modular applications). With two advanced high-speed twin-screw mixing equipment and one professional sample production line, our annual sales reached 10, 000 tons with actual production capacity reaching up to 15, 000 tons. We also have an independent laboratory with a full range of testing machines and a team of professional engineers. Our company owns ISO9001: 2008 and other quality system certifications, we can also supply the material with RoHS, REACH, and SGS certificates. We are confident to provide high-quality materials which can fully meet different clients′ expectations. Our materials are now widely used in automotive, household appliances, electronic appliances, telecommunications, and other industries.
Quality Inspection Center
Relevant finished product
Packaging & Shipping
FAQ
1. Q: Are you a manufacturer or a trading company?A:We are a company with integration of industry and trade.2. Q: Can you do OEM?A:Yes, we can do OEM products. Engraved your logo on the products and printing on the customized packaging 3. Q:And Logo printing?A:We can print your logo in the products as you required.4. Q:How can I get some samples?A:1, We are honored to offer you samples. New clients need pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for large order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon FedEx, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.5. Q:How does your factory do regarding quality control?A:1) Skillful workers care every details in handling the producing and packing processes.
2) Quality Control Department is specially responsible for quality checking in each process.
