High Quality Tungsten Carbide Heading Die

Product Description

1.tungsten carbide with high hardness, high wear resistance and high red hardness, at 550 ºC still maintain more than 56HRC hardness;
2.Has a high modulus of elasticity, generally is (4 ~ 7) × 104kg / mm2, and excellent rigidity at room temperature;
3.Have a high compressive strengthwhich is greater than 6000MPa;
4.Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized;
5.Has a low coefficient of thermal expansion, suitable for manufacturing high ,precision, sharp die.
Our size range of tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.)Cold heading, cold punching, forming and shaping dies
1. d:2----120mm available
2. D12----200mm available
3. H5----100mm available
Also your drawngs are warmly welcomed by our factory.

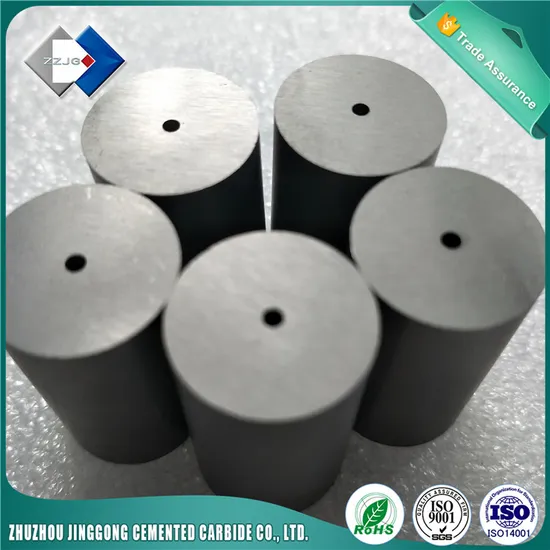

Pictures of Tungsten Carbide Dies:
Grade details for your reference:

Garde	Density (g/cm3)	Hardness (HRA)	TRS (N/mm2)	ISO Code	Applications
JGR05	15.15	94	2000	K05	With excellent wear resistance,suitable for making nozzles,small sized drawing dies and micropore drawing dies
K10UF	14.9	93	2600	K05
K10S	14.9	91	2450	K20	With excellent wear resistance,suitable for making nozzles,small sized drawing dies and woodworking carbide strips
YG6	14.9	91	2450	K20	Medium grain,with good wear resistance and toughness,suitable for making medium and small sized drawing ies and woodworking carbide strips
YG8	14.7	90	2000	K20	Medium grain,with extensively applicable wear resistance and toughness,suitable for making various-sized drawing dies material and woodworking carbide strips
JG08	14.65	90	3000	K20	Medium grain,with high toughness,suitable for making various top grade die material and woodworking strips
YG11	14.45	88.5	2600	K30	Medium grain,with good impact resistance and toughness,suitable for making medium and large sized drawing dies
YG15	14.1	87	2600	K40	Suitable for making steel pies and steel rods under strong stress and big compressibility,also can be making punching dies under large impact load
JG15A	14.0	87.5	3000	K40	With high toughness and excellent impact resistance,suitable for making vaious top grade step processing dies
YG20	13.6	85	2600	K50	Suitable for making punch dies,such as bolts and nuts
JG20	13.65	85	3200	K50	Suitable for making punch dies,such as bolts and nuts
YG20C	13.6	83	2600	K50	Suitable for making punch dies such as watch components,musical instrument reeds,small sized steel bals,normal impact resistance forging dies

More Products: Our guarantee:
ZHUZHOU JINGGONG's Advantages in Carbide Industry:
1. We are a REAL factory located in Zhuzhou, with over 200 employees here for over 16 years.
2. We are ****** Assessed 6 years Gold Supplier.
3. Our output is over 80 tons per month.
4. Certificated by RoHS, ISO 9001:2008, ISO 14001:2004.
5. 100% QC inspection before shippment
6. Our products are produced by 100% Virgin material.
7. We can produce the non-standard items according to your samples or drawings.
More Questions? Warmly Welcome to Send Inquiry!
