China Hot Sale Small Double Shaft Shredder Recycling Machine for Industry Use
| US$5,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WED-600
Type
Double Shaft Shredder
Structure
Top Feed
Knife Roll
High Alloy Steel
Automation
Automatic
Computerized
PLC Control System
Certification
CE
Power
15kw
Capacity
15/18.5
Weight
Approx 1.2tons
Shredding Chamber
800*600mm
Transport Package
Wooden Case with Film
Specification
2240*1050*2020mm
Trademark
WELL-Atech
Origin
China
HS Code
8477800000
Production Capacity
300sets
Packaging & Delivery
Package Size
234.00cm * 115.00cm * 212.00cm
Package Gross Weight
1230.000kg
Product Description

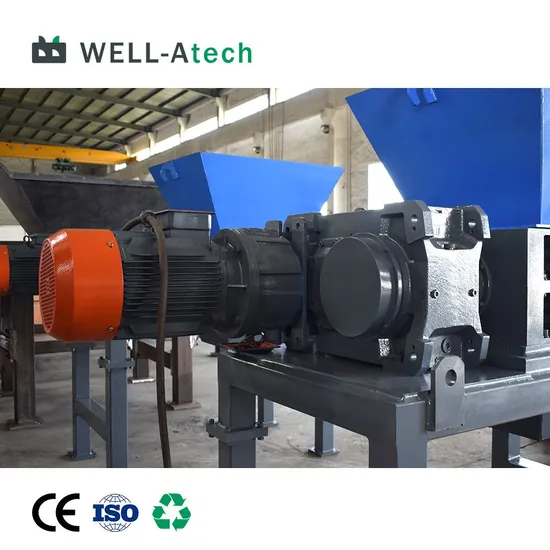

WED series double shaft shredder driven by single motor and gearbox. Drive two shafts at the same time by gears to achieve the shredding of material.This series is light load shearing type shredder, which has compact structure and small footprint. But it has strong core strength, adopts high alloy steel blades ,42CrMo shaft, and detachable counter blade design.
Product Description
Project Site
Product Parameters
| Model | WED-450 | WED-600 | WED-800 | WED-1000 | |
| Shredding Chamber(mm) | 350*450mm | 600*550mm | 800*600mm | 1000*700mm | |
| Power | 5.5/7.5KW | 15KW | 22KW | 30KW | |
| 7.5/10HP | 20HP | 30HP | 40HP | ||
| Blades Diameter | ∅234mm | ∅280mm | ∅300mm | ∅330mm | |
| Blades Thickness | 10/20mm | 20/30mm | 20/30mm | 30mm | |
| Rotor Blades QTY | 34/18pcs | 30/20pcs | 42/26pcs | 34pcs | |
| Speed | 30rpm | 20rpm | 10-25rpm | 10-25rpm | |
| Capacity | 0.3-0.8t/h | 0.5-1.5t/h | 1-2.5t/h | 1.5-3t/h | |
| Net Weight | 0.6t | 1.2t | 1.8t | 2.2t | |
| Dimension | 1320*800*1800mm | 2240*1050*2020mm | 2500*1120*2230mm | 2510*1865*2550mm | |
| Voltage | Can be customized | ||||
Features
Application
+ Kitchen : Fruit And Vegetable Waste, Kitchen Waste, Wet Market Waste etc
+ Plastic : Plastic Bottles, Plastic Jugs, Plastic Buckets, Plastic Baskets etc
+ Electronic : Old Hard Disk, PCB Boards, Keyboards, Mice, Mobile Phones, CDs etc
+ Metal : Iron Shavings, Cans, Paint Buckets, Light Metals etc
+ Industrial : Old Clothes, Leather, Textile Scraps, Carpet Factory Waste Fabric etc
+ Medical waste: Syringe Waste,Expired Drug, Small Medical Equipment, Latex Material Waste, Waste Masks
+ Chemicals: Scr Denitration Catalyst, Polyamide Wax etc
