High Speed Vertical CNC Milling Machine Cl1500 with OEM/ODM Service

Product Description

Product Description

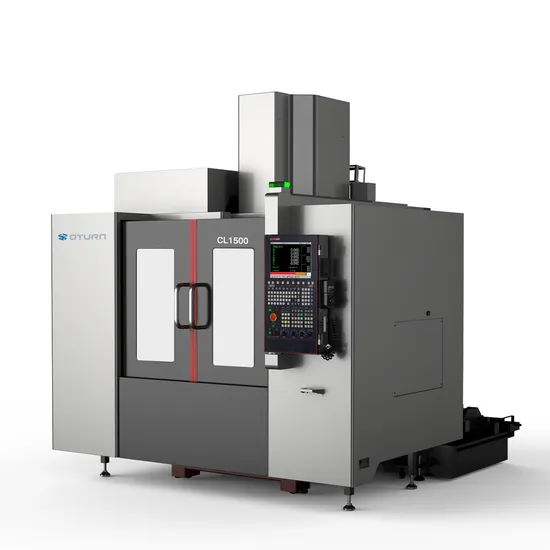

High-speed, high-performance high-speed precision vertical machining center CL1500 has the characteristics of high rigidity, high precision and high efficiency machining. The column adopts herringbone design and large span, which can greatly enhance the bending torsional strength of the column; The table adopts a reasonable slide span and does surface quenching, so that the table is evenly stressed and the hardness is improved; The bed adopts trapezoidal section to reduce the center of gravity and improve the torsional strength; The whole machine adopts finite element analysis to design each component to provide the best overall stable performance.
The three-axis rapid displacement is 48 m/min, the T-T tool change time is only 4S, the tool magazine is fully loaded for 24 hours without alarm running machine and the 3-dimensional test of each machine test processing sample passes to ensure the efficient and continuous stability of the machine after leaving the factory. It is suitable for various complex shapes of two, three-dimensional concave and convex models and complex cavities and surfaces, and is also suitable for milling, drilling, expansion, boring, tapping and other processing operations of valves, cams, molds, plates and box parts in the manufacturing industry, and is more suitable for small and medium-sized batch multi-variety processing and production, and can also enter the automatic line for mass production.
Using Fanuc's latest oi-MF PLus system, 10.4-inch LCD display, tool information management, processing simulation, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and fast; The high-speed optical fiber communication mode greatly improves the data processing ability and control performance of the numerical control system, and the program storage capacity is increased to 2M, with Ethernet & editable storage, which facilitates the fast and efficient transmission and online processing of the program.

Product Parameters

Item		unit	Specification
Travel	X/Y/Z axis travel	mm	1500×800×750
	Distance from spindle end face to work table	mm	150-900
	Distance from spindle center to column guide surface	mm	870
Worktable	Worktable (L×W)	mm	1700×800
	T-slot (number of slots - width x pitch)	mm	5-22×145
	Max. load	kg	1500
Three axis feed	Rapid feed of X/Y/Z axis	m/min	20/20/12
	Cutting feed rate	mm/min	0-8000
Spindle	Spindle specification (installation diameter/transmission method)	mm	190/gear box
	Spindle taper hole	mm	BT50 belt
	Spindle Max. speed	r/min	6000
	Spindle motor power (continuous/S2 25%)	kW	16.2/38
	Spindle motor torque (continuous/S2 25%)	N.m	126/240(high) 504/960(slow)
Tool magazine	Tool magazine capacity		24T
	Tool change time (T-T)	s	5
	Max. tool diameter (full tool / empty tool)	mm	105/210
	Max. tool length	Mm	350
	Max. tool weight	kg	15
Guide	X-axis guide (size/number of slides)	mm	55/3 (roller)
	Y-axis guide (size/number of sliders)		45/2 (roller, 4 guide)
	Z-axis guide (size/number of sliders)		Box way
Screw	X-axis lead screw		Φ50×10
	Y-axis lead screw		Φ50×10
	Z-axis lead screw		Φ50×10
Accuracy	Positioning/repeatability	mm	0.005/300
	Positioning/repeatability	mm	0.003/300
Lubrication system	Lubrication unit capacity	L	4
	Oil separator type		Volumetric
Cutting fluid	Water tank Capacity	L	180
	Cutting pump parameters		0.32Mpa×16L/min
Other	Air demand	kg/c	≥6
	Air source flow	mm3/min	≥0.4
	battery capacity	KVA	25
	Machine Weight (Comprehensive)	t	11
	Mechanical Dimensions (L×W×H)	mm	4200×3240×3593

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
