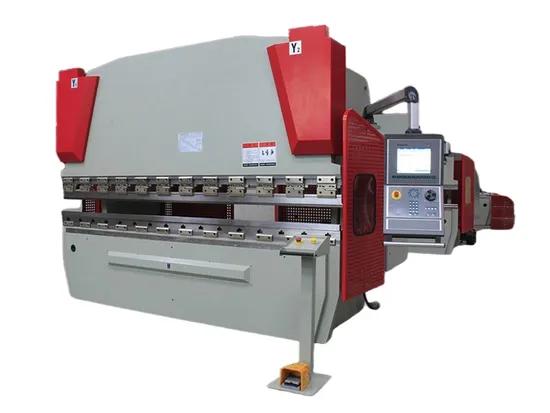

Advanced Nc Press Brake for Heavy-Duty Stainless Plate Bending

Product Description

1.Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list
Tool clamping and Press Brake Die
Main electric elements(Siemens)
Estun E200 system

NO.	Item	Parameter value	Unit	Remark
1	Nominal force	630	KN
2	Bending width	2500	mm
3	Slider travel	100	mm
4	Max opening height	300	mm
5	Distance between vertical poles	1900	mm
6	Depth of throat	320	mm
7	Travel times	8	T/M
8	Internal gear pump	NT3-G16F
9	Max force of system	31.5	Mpa
10	Motor power	5.5	Kw
